Baby Wolf Loom

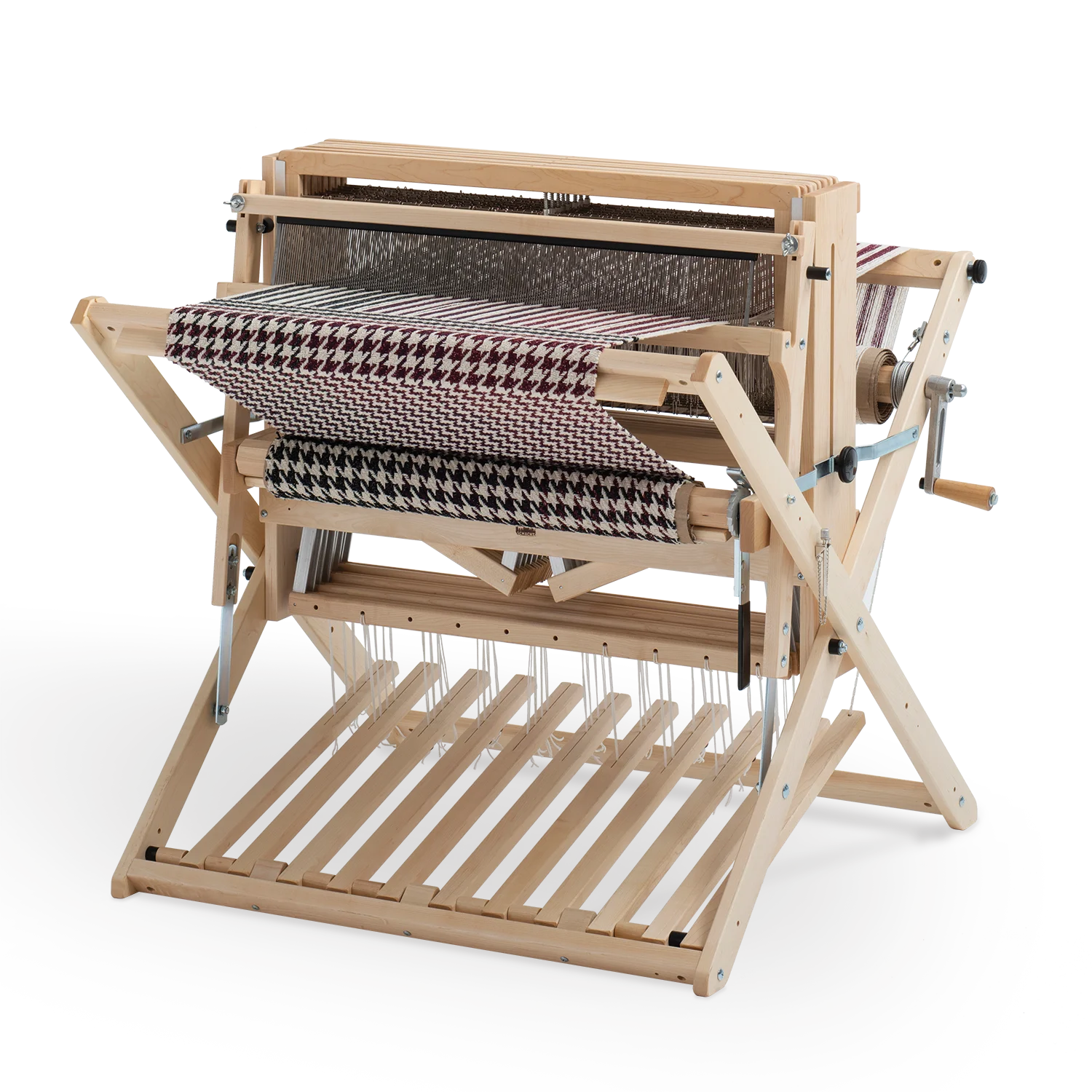

SCHACHT BABY WOLF LOOM

Our Baby Wolf loom is the most uncompromised small loom available today. It has all the advantages of portability while maintaining the best big loom features. If compactness and portability are what you are looking for, you’ll be interested in this thoughtfully engineered loom.

The weaving width of the Baby Wolf is 26″. You have your choice of four or eight shafts, or you can choose our Four Now-Four Later* model which allows you to expand from four shafts to eight shafts at any time. The X-frame design is exceptionally stable and can be easily folded to a depth of 18″.

The adjustable beater allows the position of the shuttle race to be raised or lowered if necessary. The Baby Wolf employs a friction brake on the warp beam which lets you advance the warp smoothly.

*”Four Now – Four Later” (4N4L) is an eight harness loom shipped with only four harnesses installed, but with the capacity to add an additional four harnesses. You can purchase a kit to add four harnesses at a later time. 4N4L looms are shipped with all the heddles, tie-ups and other items normally included with an eight harness loom.

Accessories

Sectional Beam
Our sectional warp beam kit is added to an existing beam and has two-inch sections and a 12″ circumference. It comes as a kit which is added to your existing beam. The Wolf looms can be folded to a depth of 20″ with the sectional beam on.

Loom Bench with optional bags
Our loom bench is a beautiful companion piece to our looms. The bench seat height is adjustable from 19″ to 24″ and has been designed to offer you both a flat and a slanted seat position. The bench is free of side posts, which allows you to move around unrestricted. Below the seat is a storage bin for holding accessories. The loom bench is available in cherry and maple.

Our optional bench bags can be purchased with the bench or added later. The bags are made of durable Cordura cloth and can be mounted on either or both sides of the bench seat. They are available with cherry or maple end bars.

Strollers
Most Wolf aficionados find the Wolf Stroller an indispensable accessory. Whether you’ve got a Baby Wolf or Mighty Wolf, our Stroller makes moving your loom around easy. When installed on the loom, the wheels automatically engage when the loom is folded up, and disengage when the loom is opened.

Treadle Tracker
No more taping your draft to the front of your loom. With the Schacht Treadle Tracker, you can display your draft or treadling sequence in easy view.

The Wolf Trap
Here’s another great storage option, wide enough to hold shuttles, threading hook, bobbins, and scissors, but doesn’t interfere with your weaving.  Please note that the shape of the beams the Wolf Trap attaches to have been modified at various times in the product’s history. In the past we produced these with rounded beams but current production runs have beams that are squared.  It is important to order the correct version of the Wolf Trap so that it will properly fit on your loom.  Please contact us if you need help identifying your beam style.

High Castle Tray
Our Baby Wolf Castle Tray provides handy storage
and a convenient place to mount the swivel pin of
an extension lamp. Available in both 4-shaft and
8-shaft models at any time.

Height Extender

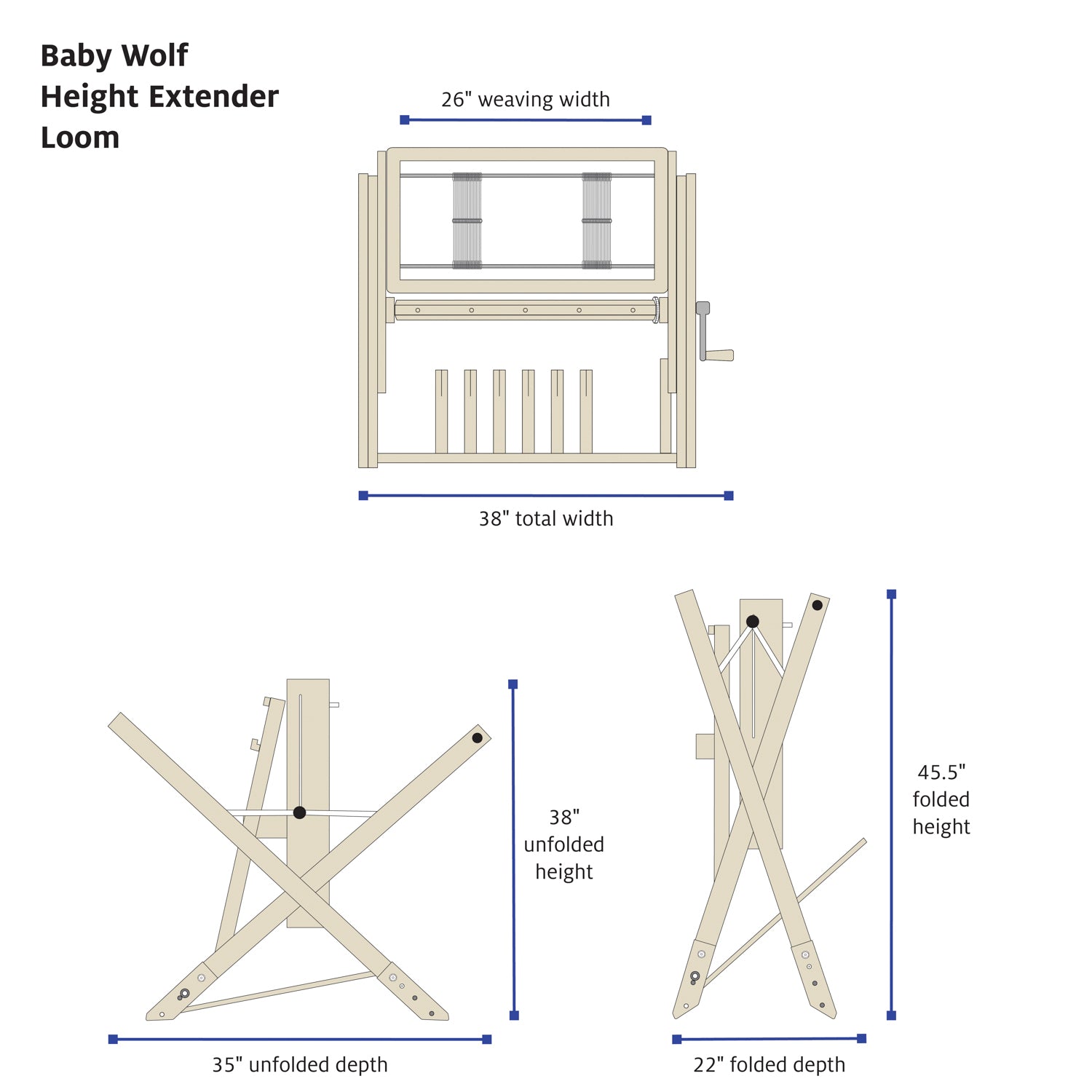

Our height extender raises the loom two inches, giving our Wolf looms the same weaving height as our Standard floor looms.

Double Back Beams
Double back beams facilitate different warp tensions needed for such weaves as pique, supplementary warp, or seersucker. Installation is straightforward. Double back beams may be added at any time. They have a separate brake.

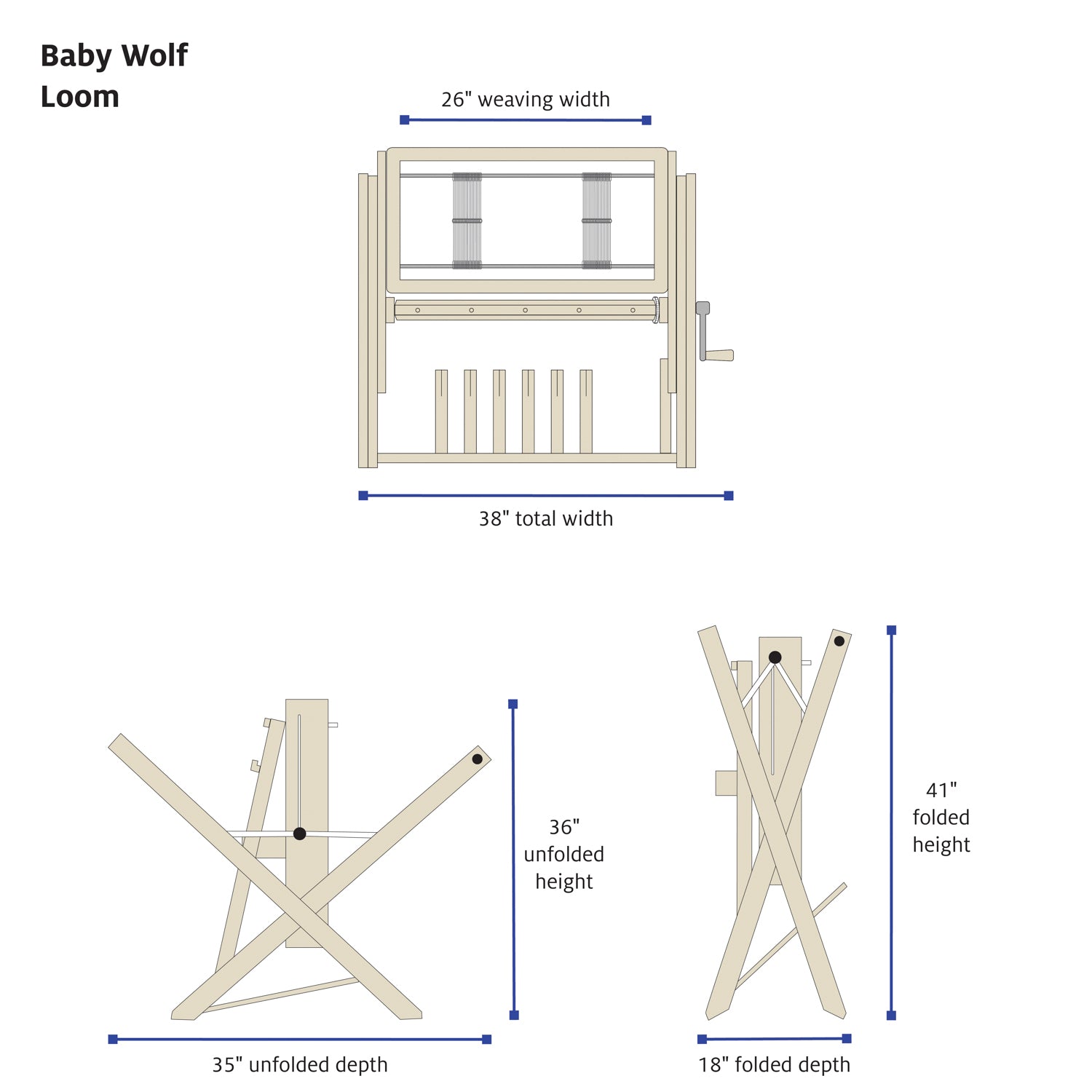

WOLF LOOM SPECIFICATIONS

Wolf Pup

Wolf Pup LT

Wolf Pup 8.10

Baby Wolf

Mighty Wolf

Weaving Widths 18″ 18″ 18″ 26″ 36″
Loom Width 26″ 26″ 28” 34″ 45″
Height @BB 29.5″ 29.5″ 29.5” 29.5″ 29.5″
Height w/Castle 35″ 35″ 35” 35″ 41″
Height Folded 42″ 42″ 40.5” 42″ 48″
Depth Open 33″ 33″ 35” 33″ 33″
Weight 4-Shaft 38lb 40lb NA 53lb 71lb
Weight 8-Shaft NA NA 69lb 71lb 94lb
Weight 4Now 4Later NA NA NA 59lb 80lb
Shipping Weight 52lb 54lb +17lb +17lb +26lb
Weight 4Later Kit NA NA NA 12lb 14lb
Shipping Weight NA NA NA +17lb +26lb
Heddles 4Shaft 300 300 NA 400 800
Heddles 8Shaft NA NA 800 800 1000
Heddles 4Now 4Later NA NA NA 800 1000

WOLF LOOM ACCESSORY SPECIFICATIONS

Wolf Pup & Pup LT

Wolf Pup 8.10

Baby Wolf

Mighty Wolf

Baby/Mighty Stroller 9″x4″x4″ 4lb 4lb
High Castle Tray 4-Shaft 3.5lb 5lb
High Castle Tray 8-Shaft 5.1lb 6lb
Wolf Pup Trap 4″x23″x2″ 0.75lb 0.75lb
Baby Wolf Trap 4″x32″x2″ 0.8125lb
Mighty Wolf Trap 4″x43″x2″ 1lb
Double Back Beam 9lb 1lb
Sectional Beam Wolf Pup 4″x4″x21″ 2lb 2lb
Sectional Beam Baby Wolf 4″x4″x30″ 5lb
Sectional Beam Mighty Wolf 4″x4″x41″ 7lb
Height Extender 4-Shaft 6lb 6lb
Height Extender 8-Shaft 8lb 8lb

REED AND HEDDLE SPECIFICATIONS

18″Reeds (Wolf Pup) Total Length: weaving width +1″
Total Height: 4.5″
26″Reeds (Baby Wolf) Total Length: weaving width +1″
Total Height: 4.5″
36″Reeds (Mighty Wolf) Total Length: weaving width +1″
Total Height: 5″
Inserted Eye Heddle 9″ from eye, center to center, .25″ eye
