Visual Parts Identifier for Baby Wolf Loom

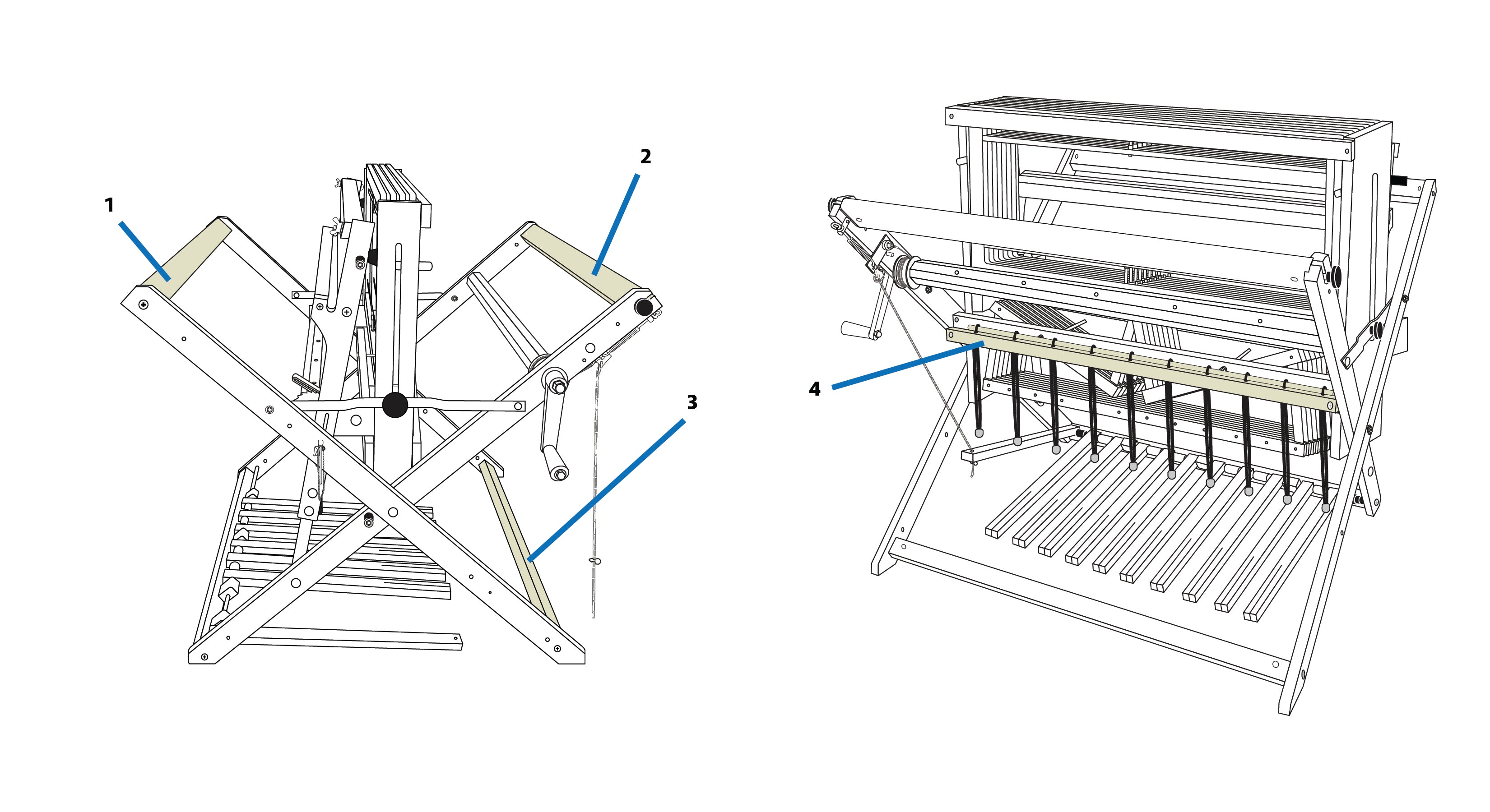

Frame Parts
- front beam with extension or extension only
- removable back beam kit or knob kit
- rear leg brace kit - you may need to drill holes on older looms
- treadle aid kit, dowels, or cords
Also available
- barrel nuts pack

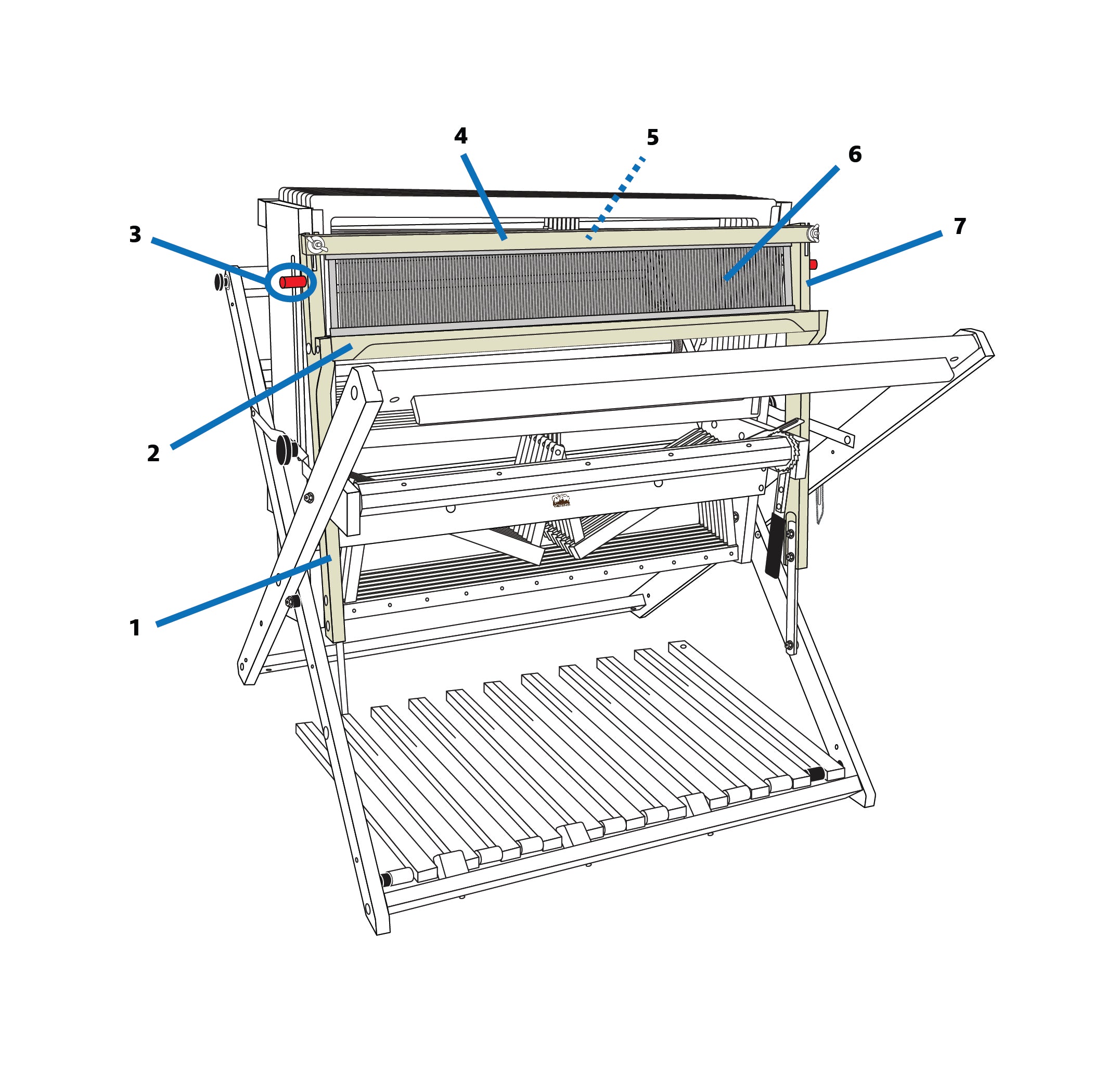

Beater Parts
- left beater side
- beater bottom kit
- beater peg kit
- beater top kit
- safety walk (gray grip strip)
- stainless steel reed (select appropriate variant)
- right beater side

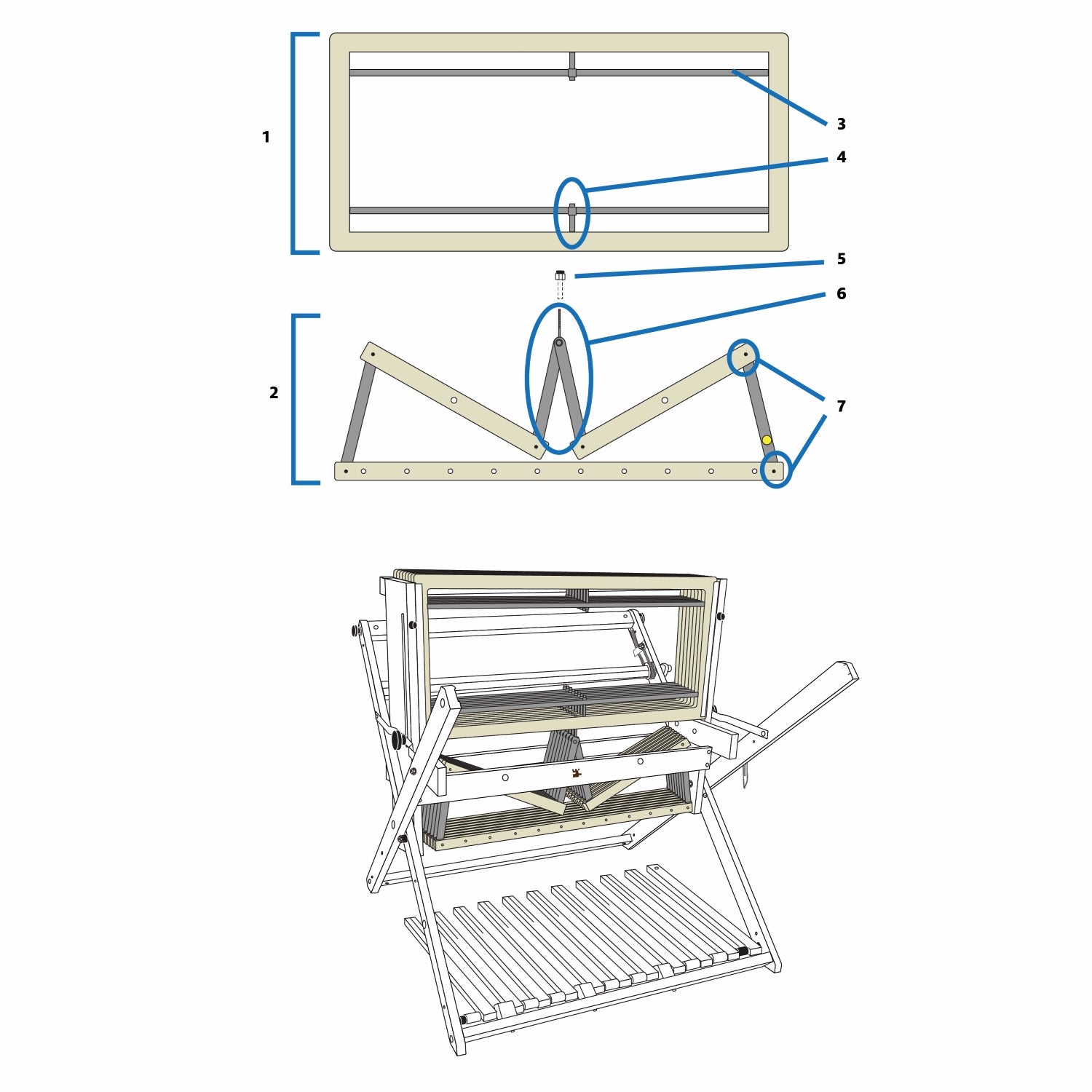

Shaft (Harness) Parts
- harness
- jack and lamm kits
- heddle bar
- heddle bar hook
- jack riser kit
- jack and lamm pin
Also available
- harness shim

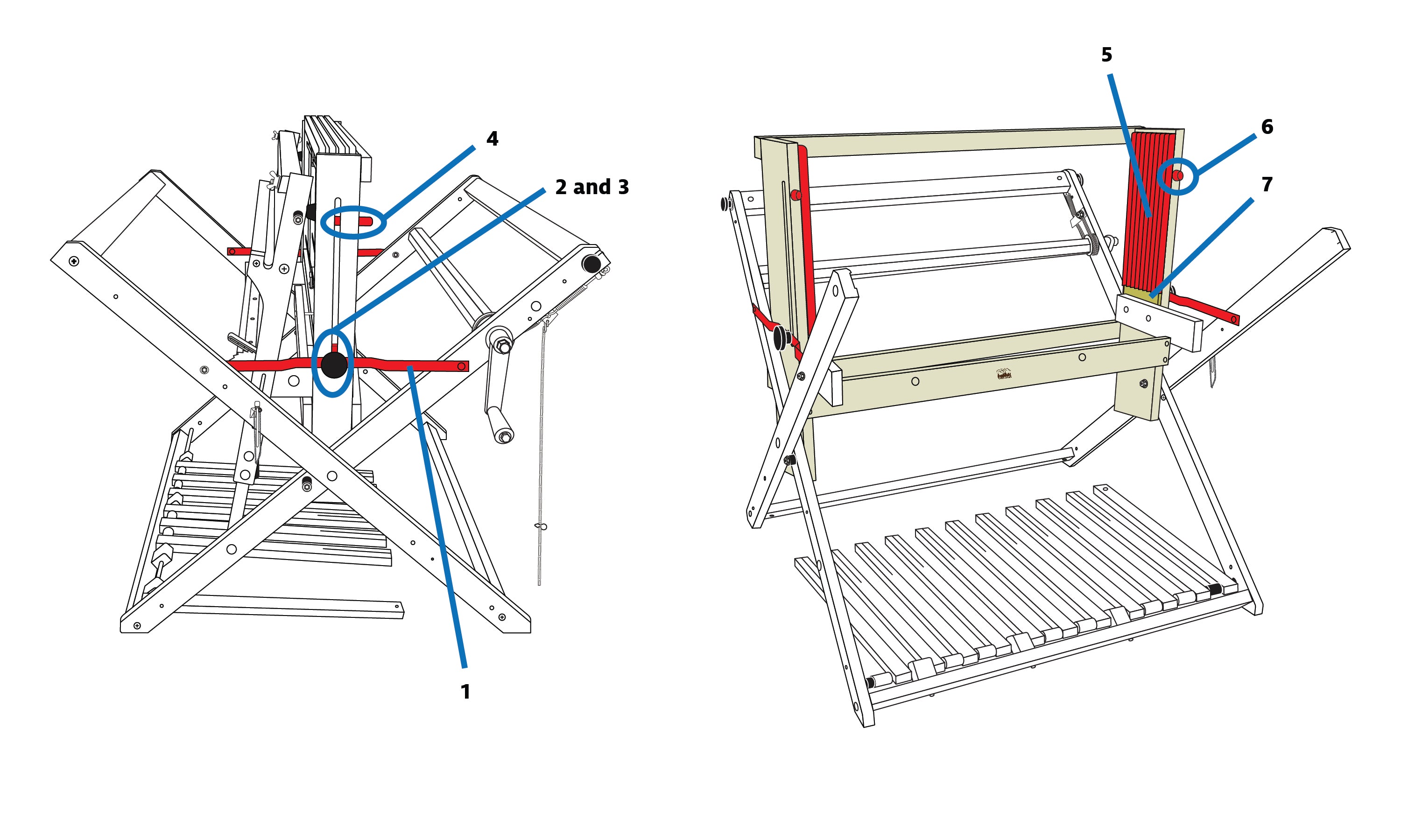

Castle Parts
- fold up support
- fold knob kit
- metal T-nut
- slide lock
- harness channel
- beater bumper
- foam tape
Treadle Parts
- dowel
- treadle
- brake release pedal
- treadle block
- long 3/4" spacer
- short 12mm spacer
Note: Height Extender looms use Height Extender treadles and a Height Extender Brake Release Pedal. 4 Now-4 Later looms ship with 10 treadles installed.

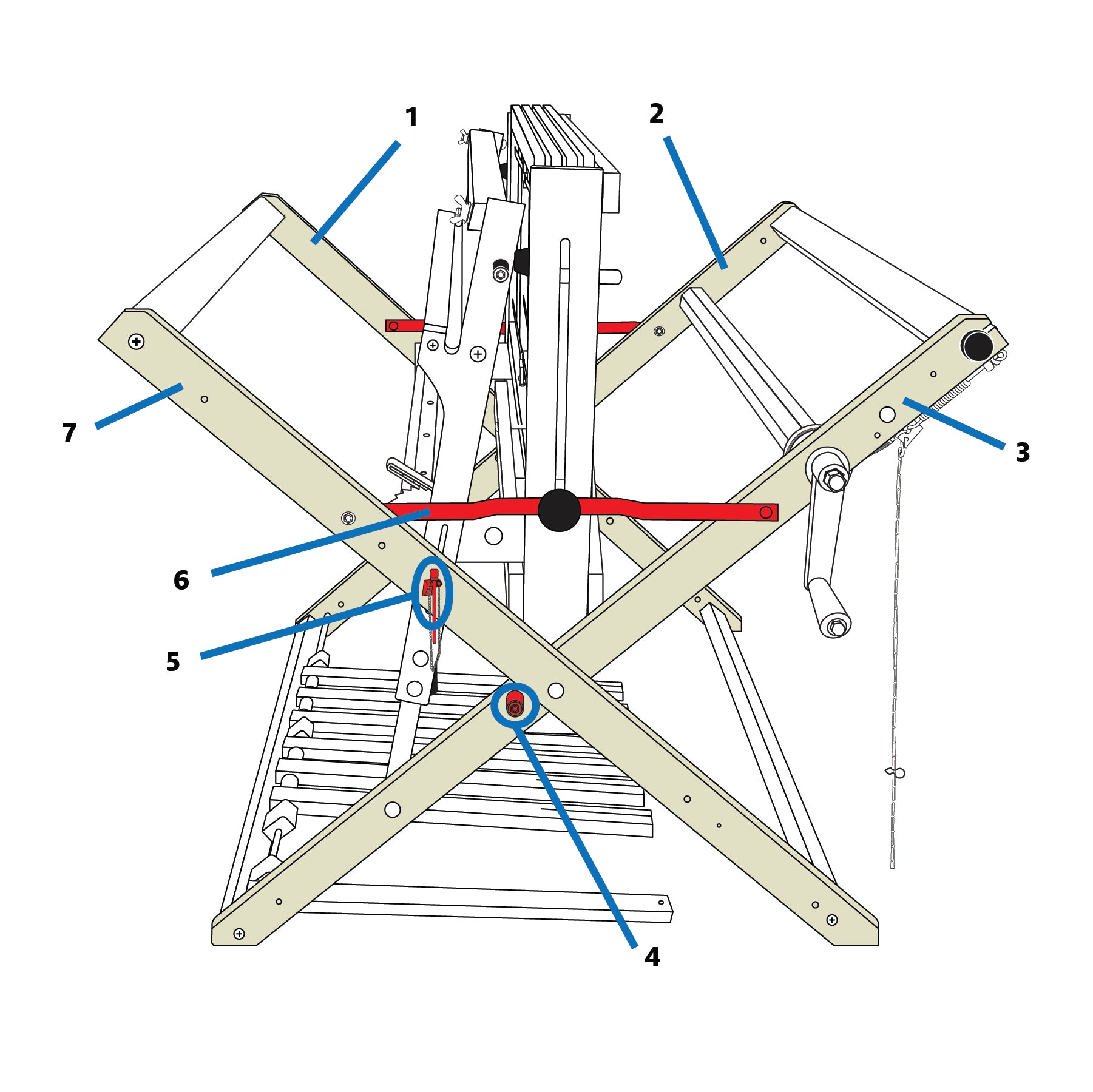

Leg Parts
- left outside leg
- left inside leg
- right inside leg
- safety stop kit on inside legs
- beater pin kit on right outside leg
- fold up support
- right outside leg
Wolf Loom Brake and Ratchet System
- brake barrel nuts (choose the appropriate option)
- brake spring with insert
- brake cord kits (choose the appropriate option)
- brake cable kits (choose the appropriate option)
- complete warp beam crank handle or tapered handle kit
- cap nut
- ratchet advance lever
- ratchet dog
- ratchet gear
Find complete details on CLICK FOR PARTS page.
