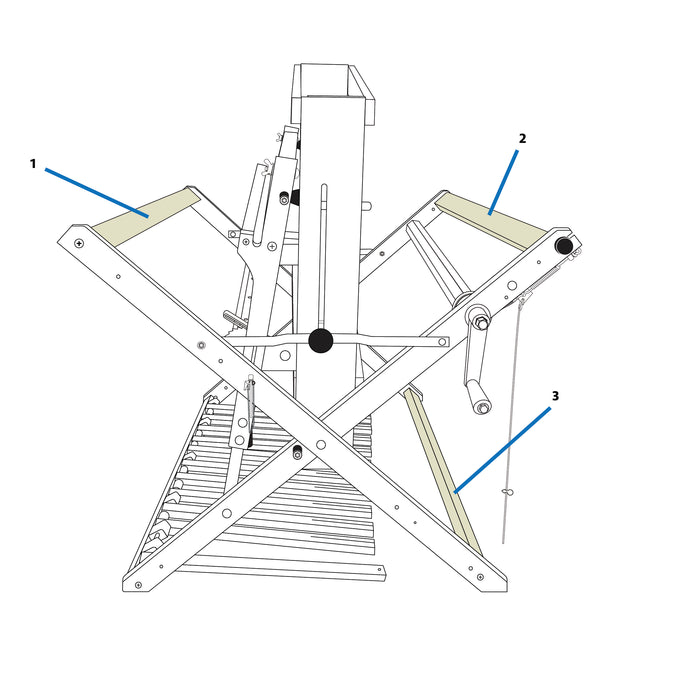

1. front beam with extension or extension only
2. removable back beam kit or knob kit
3. rear leg brace kit

Also available

• barrel nuts pack

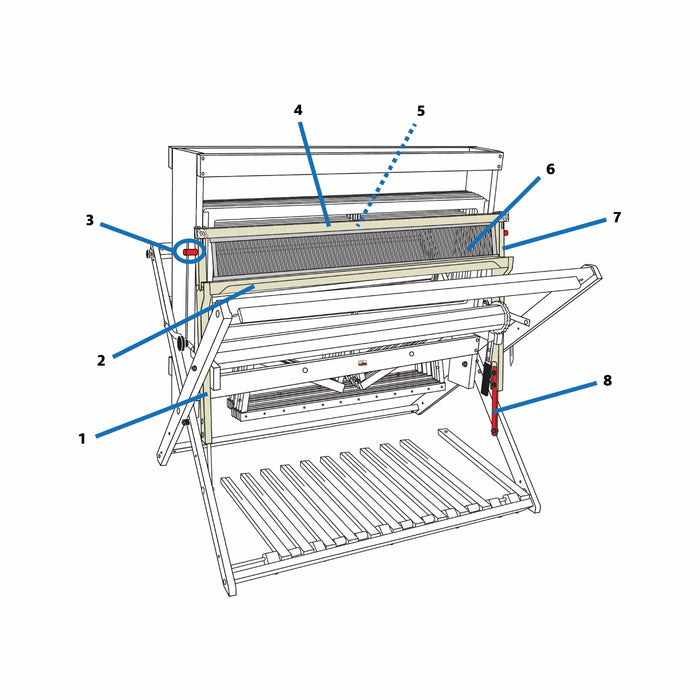

1. left beater side
2. beater bottom kit
3. beater peg kit
4. beater top kit
5. safety walk (gray grip strip)
6. stainless steel reed (select appropriate variant)
7. right beater side
8. beater support

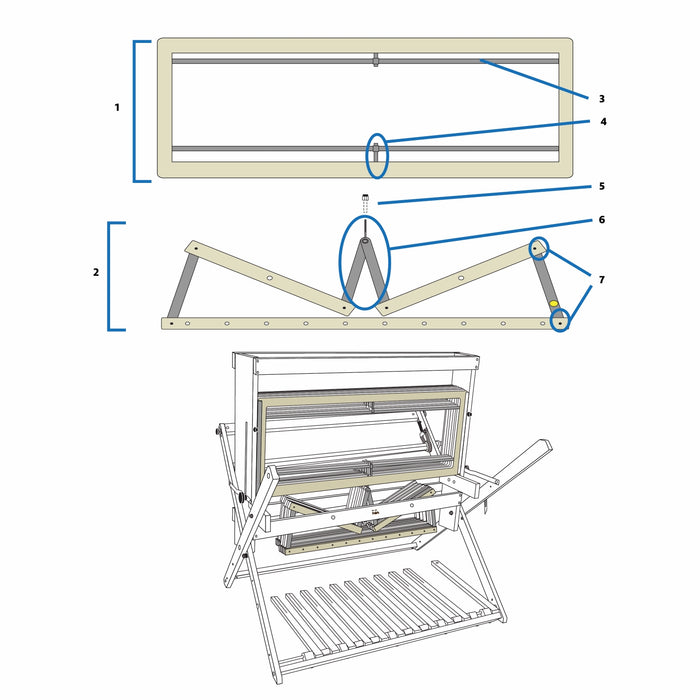

1. harness
2. jack and lamm kits
3. heddle bar
4. heddle bar hook
5. nuts and O-rings pack
6. jack riser kit
7. jack and lamm pin

Also available

• harness shim

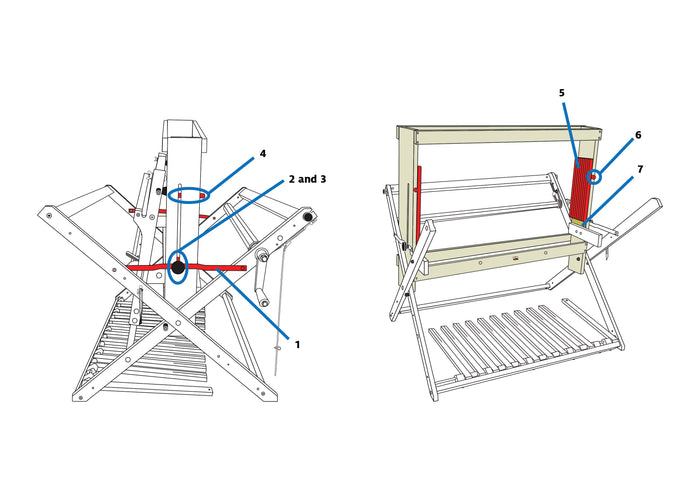

1. fold up support
2. fold knob kit
3. metal T-nut
4. slide lock
5. harness channel
6. beater bumper
7. foam tape

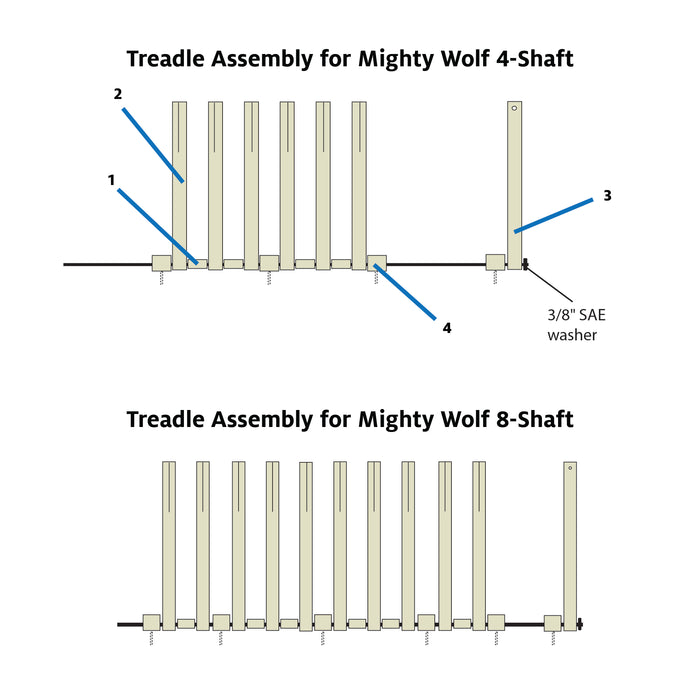

1. dowel
2. treadle
3. brake release pedal
4. treadle block

Note: Height Extender looms use Height Extender treadles and a Height Extender Brake Release Pedal. 4 Now-4 Later looms ship with 10 treadles installed.

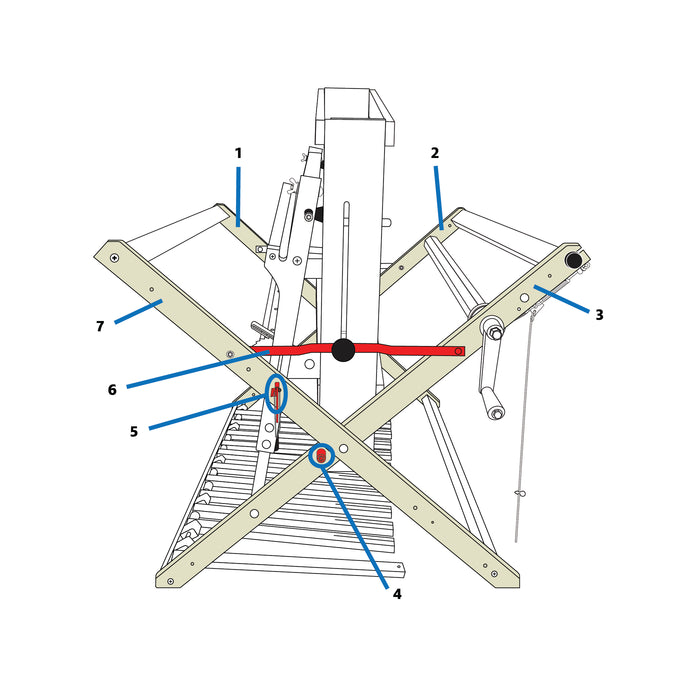

1. left outside leg
2. left inside leg
3. right inside leg
4. safety stop on inside legs
5. beater pin kit on right outside leg
6. fold up support
7. right outside leg

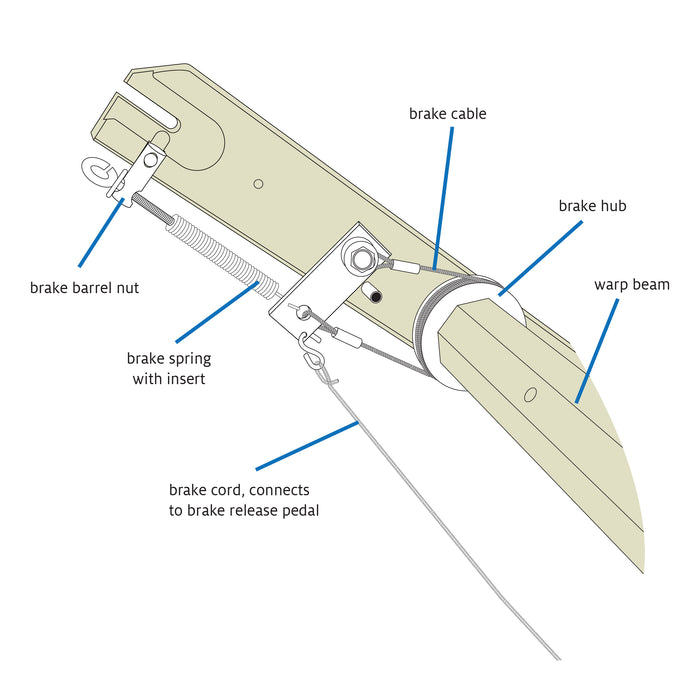

• brake barrel nuts (choose the appropriate option)
• brake spring with insert
• brake cord kits (choose the appropriate option)
• brake cable kits (choose the appropriate option)
• complete warp beam crank handle or tapered handle kit
• cap nut
• ratchet advance lever
• ratchet dog
• ratchet gear

Find complete details on PARTS Page.
