Visual Parts Identifier for Standard Floor Loom

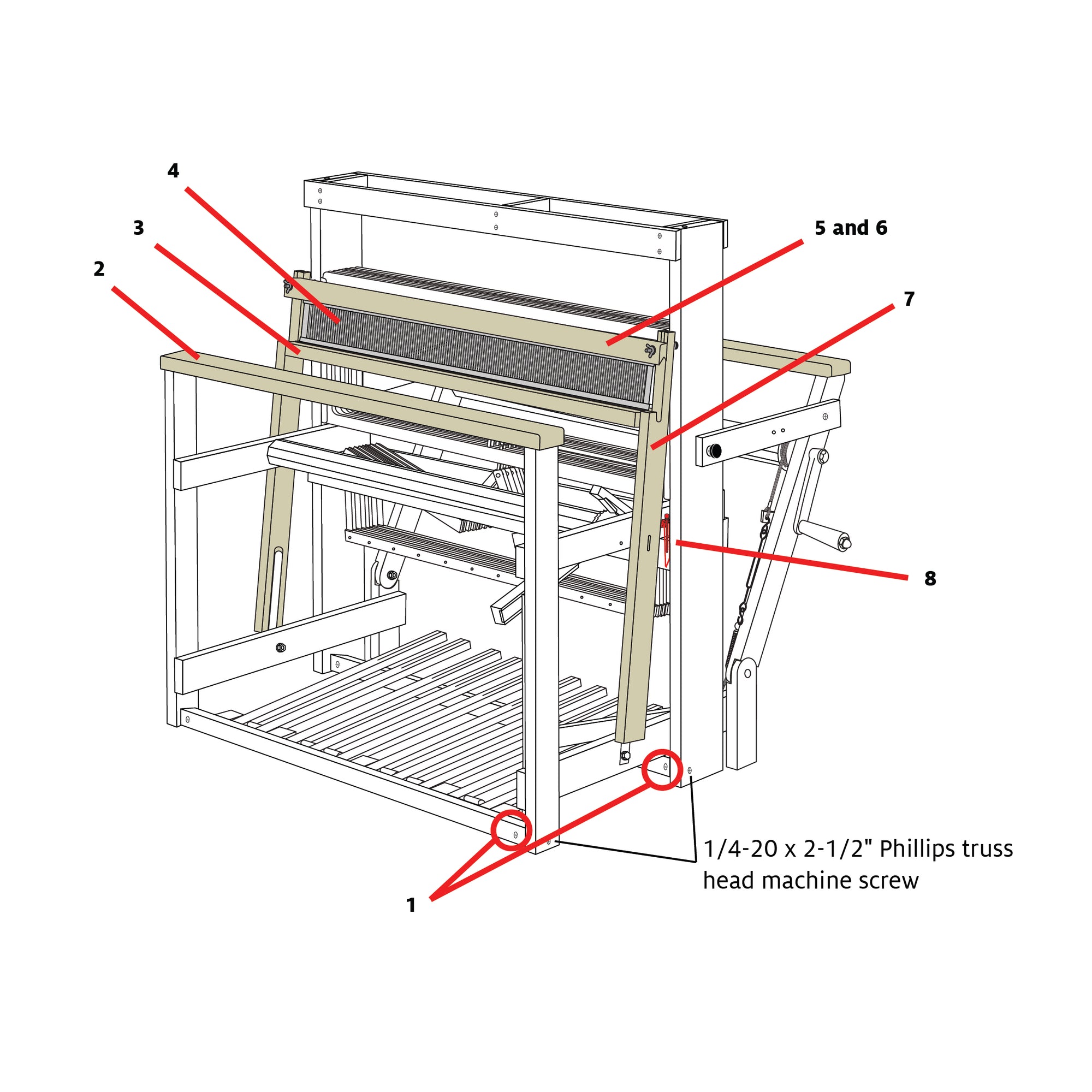

Frame and Beater Parts
  1. 1/4-20 (long) barrel nuts pack
  2. 36" or 45" square beam (same for front and back)
  3. 36" or 45" maple beater bottom kit
  4. stainless steel reed
  5. 36" or 45" maple beater top kit
  6. safety walk (gray grip strip)
  7. beater sides (choose appropriate option)
  8. beater pin kit
click for parts

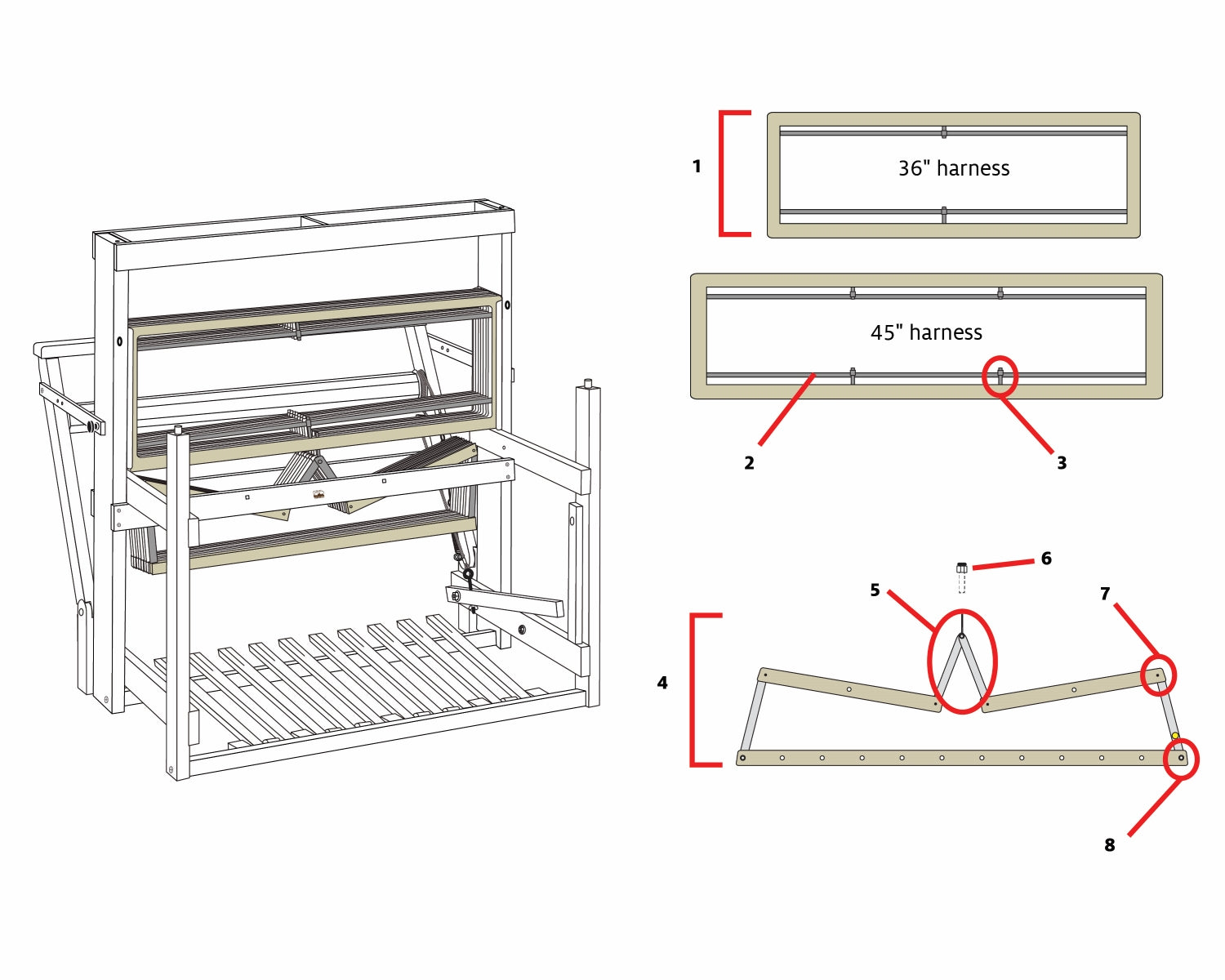

Shaft (Harness) Parts
  1. 36" or 45" complete shaft in maple or cherry (select appropriate option)
  2. 36" or 45" heddle bar
  3. heddle bar hook
  4. 36" or 45" complete jack and lamm assembly
  5. jack riser kit
  6. jack pin
  7. lamm pin
click for parts

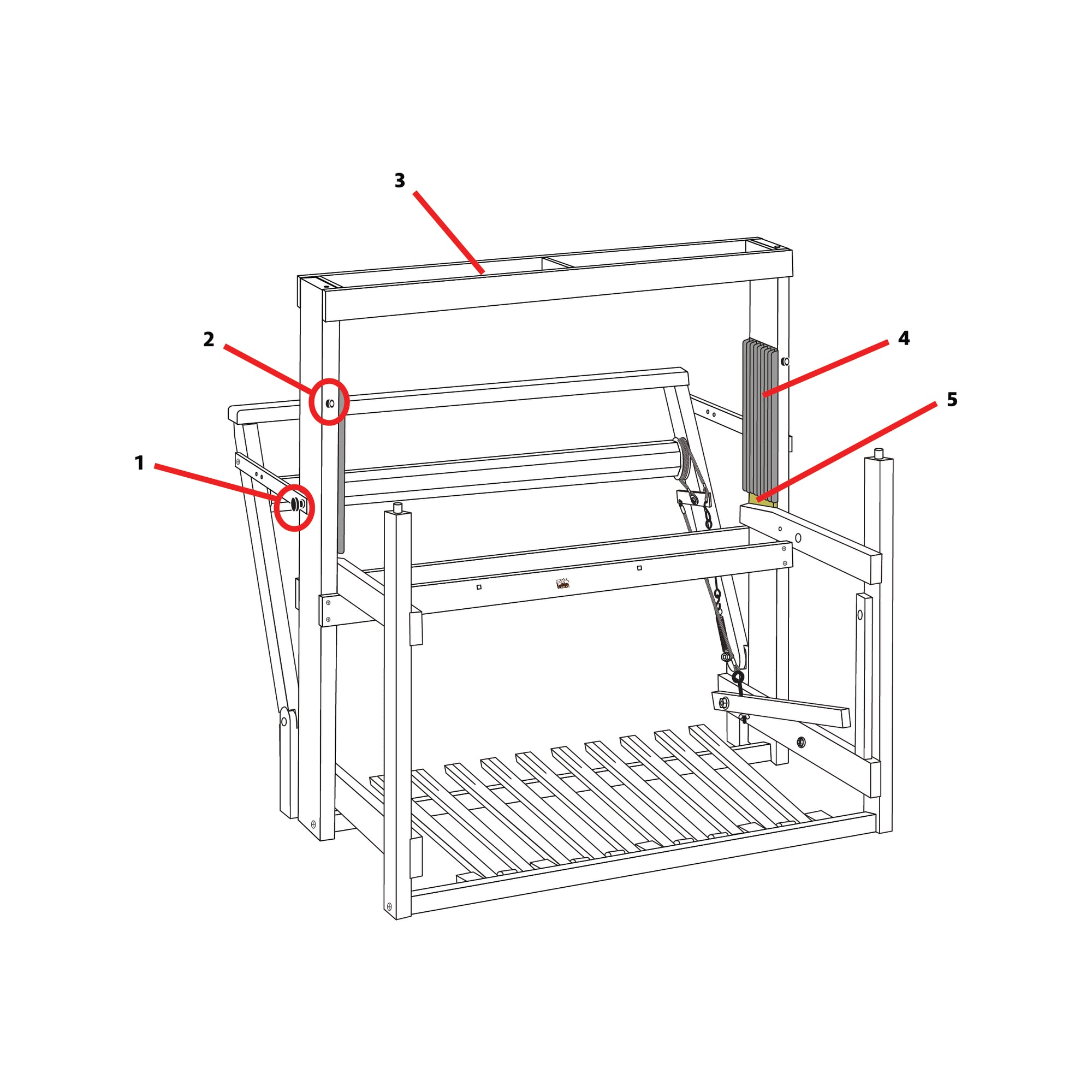

Castle Parts
  1. fold knob kit
  2. beater bumper
  3. castle shelf for 36" maple, 36" cherry, 45" maple, 45" cherry
  4. harness channel
  5. foam tape
click here for parts

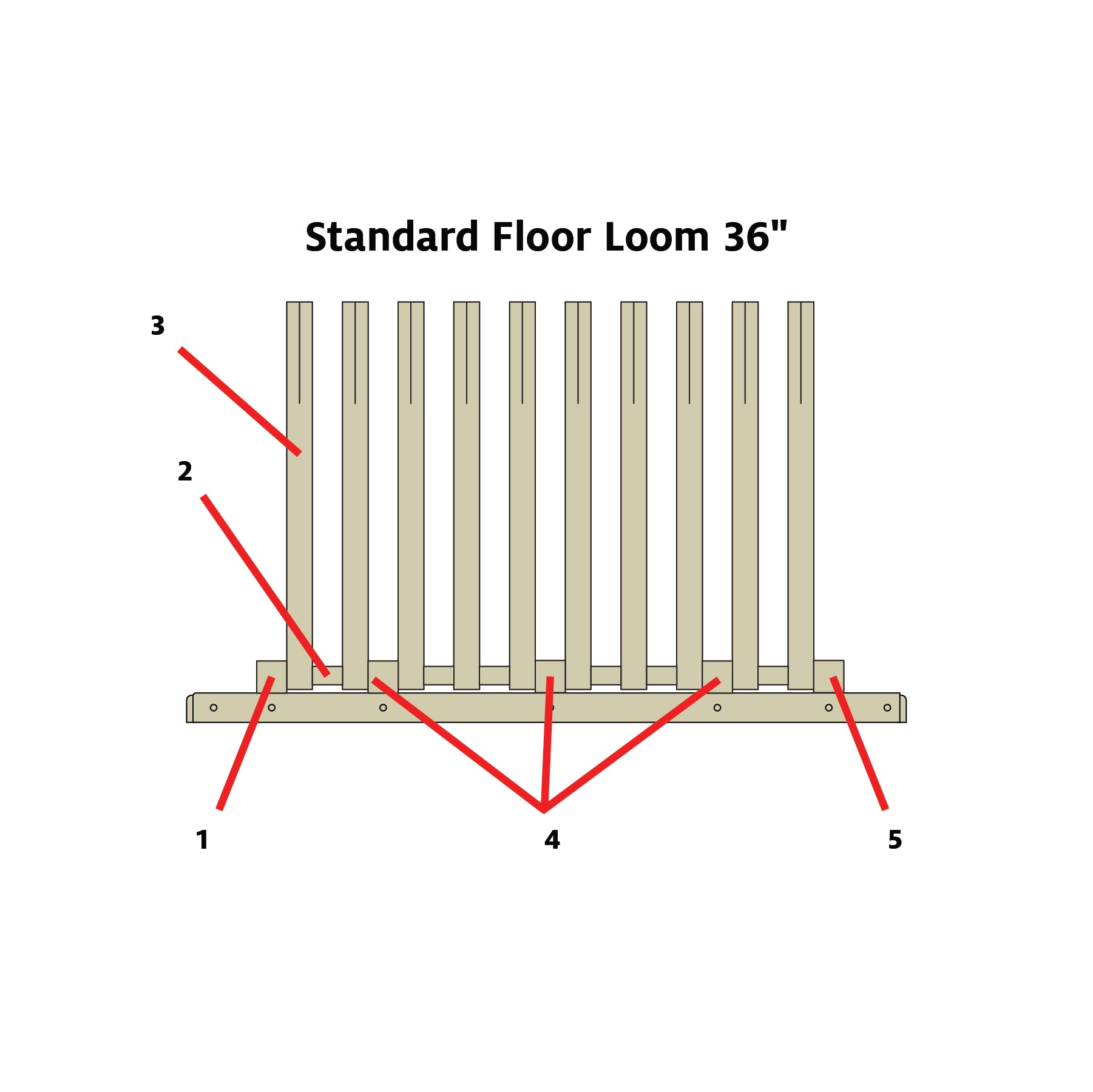

Treadle Assembly Parts
  1. left treadle block
  2. treadle spacer dowel
  3. treadle
  4. center treadle block
  5. right treadle block

See all treadle assemblies on CLICK FOR PARTS page.

click for parts
Brake and Ratchet Parts

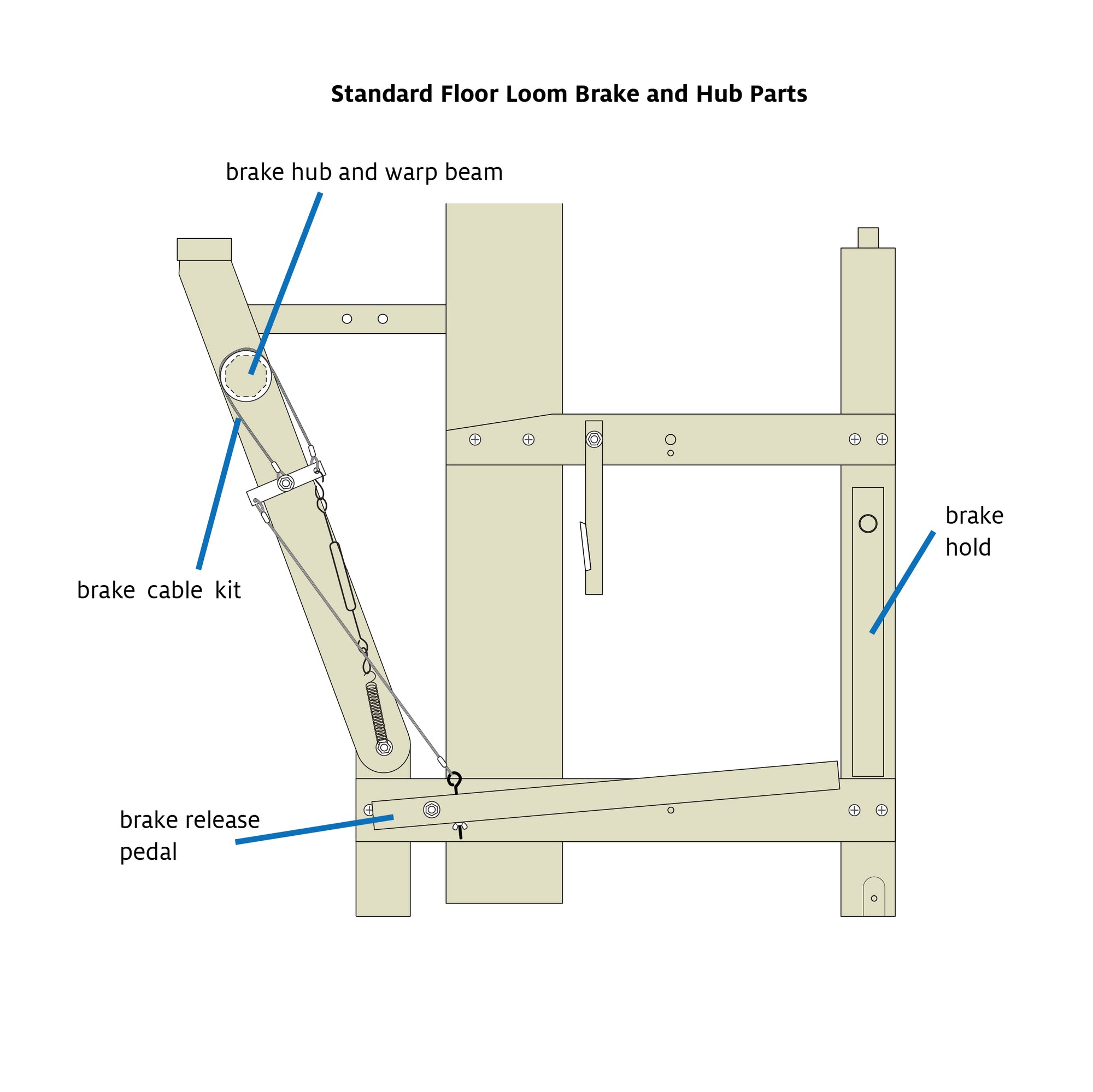

Brake Parts

  • brake cable and spring kit for all Standard Floor Looms
  • brake cable and spring kit for all SFL double back beams
  • brake hold in cherry or maple
  • brake release pedal in cherry or maple
  • brake hub kits: hub only or warp beam with brake hub installed (choose the appropriate option)
  • complete warp beam crank handle (includes tapered handle) or tapered handle kit for all Standard Floor Looms and double back beams
  • cap nut for the warp beam axle on all Standard Floor Looms and double back beams

Ratchet Parts

  • complete ratchet advance lever in maple or cherry, or metal pawl only
  • ratchet dog in maple or cherry, or metal ratchet tab only
  • ratchet gear kit
Click for parts

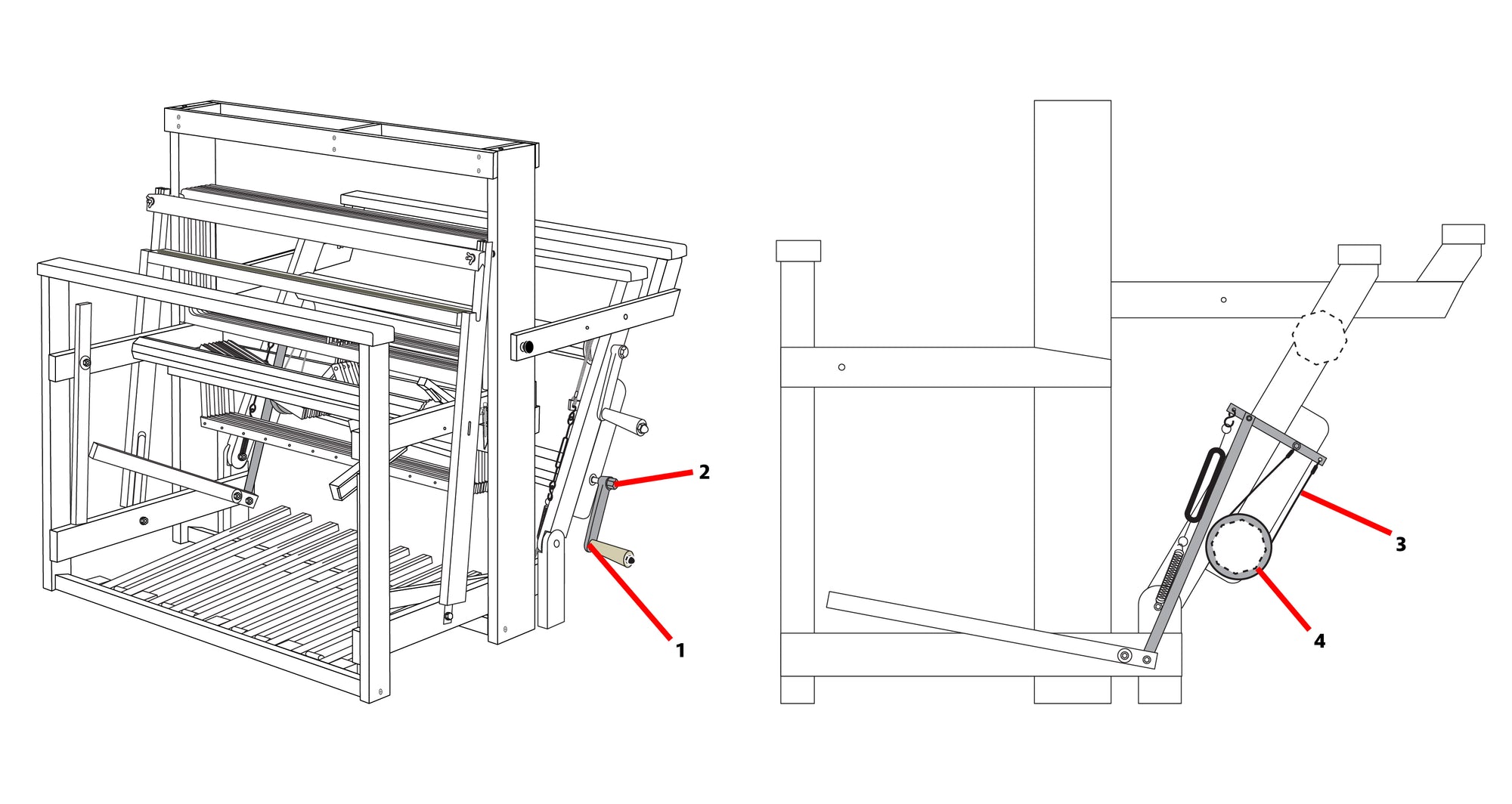

Double Back Beam Parts
  1. complete warp beam crank handle (maple or cherry) or tapered handle in maple or cherry
  2. cap nut for warp beam crank handle
  3. brake cable and spring kit
  4. brake hub kit

Also available

  • apron cords
  • apron bars 36" or 45"
click for parts
Sectional Beam Parts
  1. dowel jig
  2. cord
  3. dowel
click for parts
Trap Parts
  1. safety walk (gray grip strip)
click for parts
