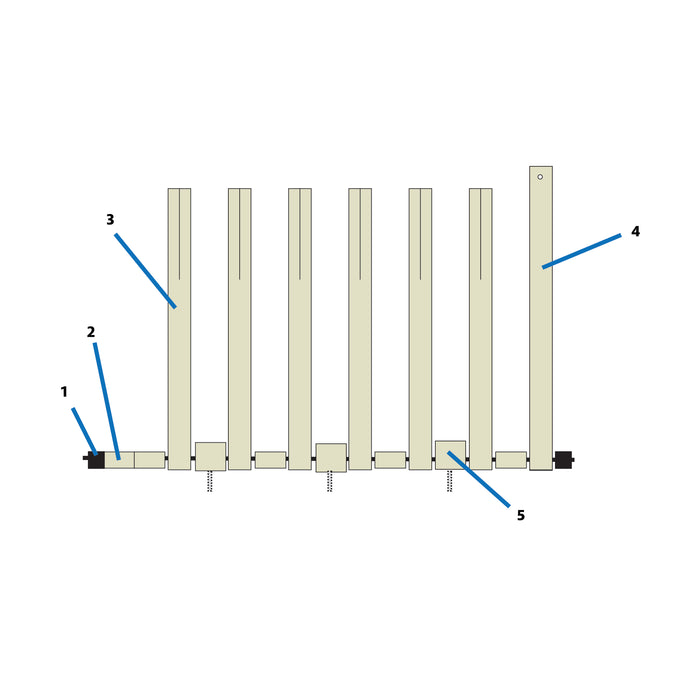

1. short 12mm spacer
2. dowel
3. treadle
4. brake release pedal
5. treadle block

Also available

• height extender treadles
• height extender brake release

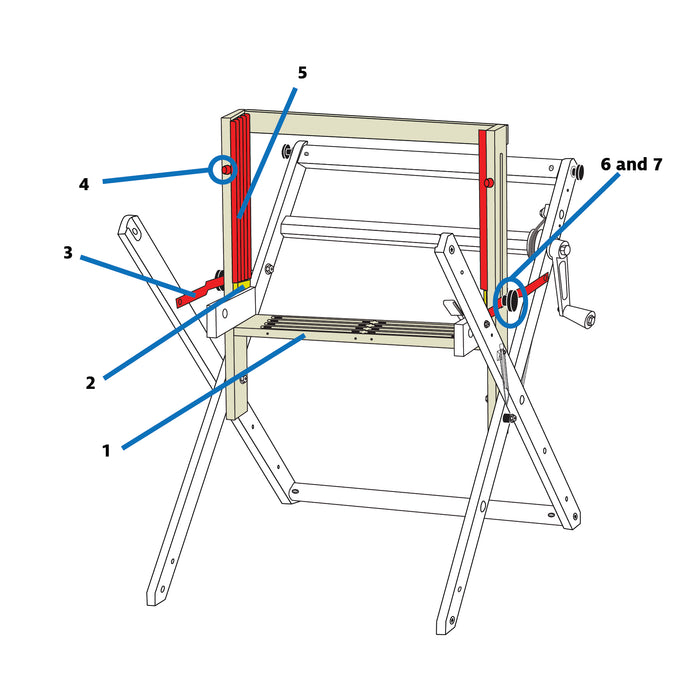

1. pulley brace or pulley and axle
2. foam tape
3. fold up support
4. beater bumper
5. harness channel
6. fold knob kit
7. metal T-nut

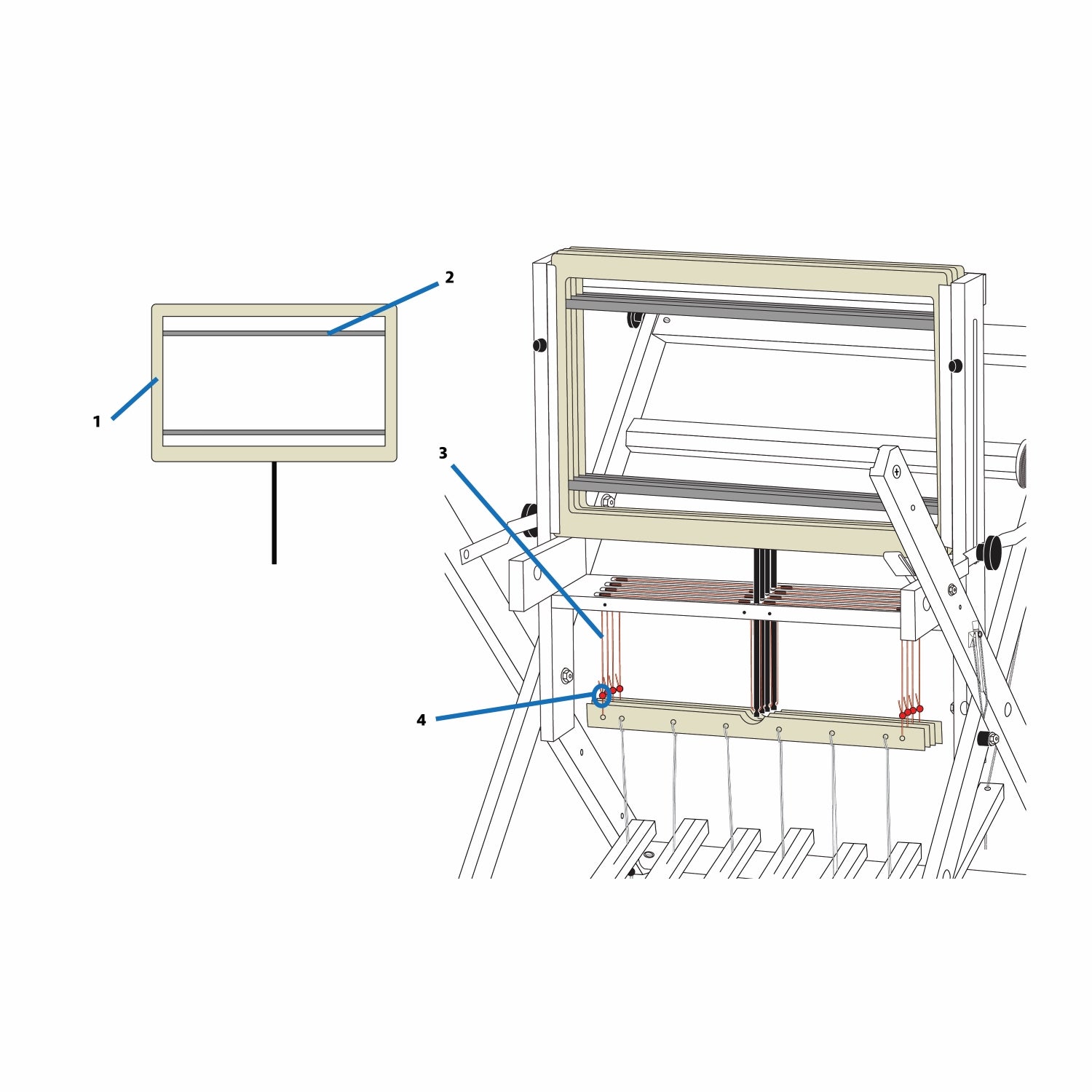

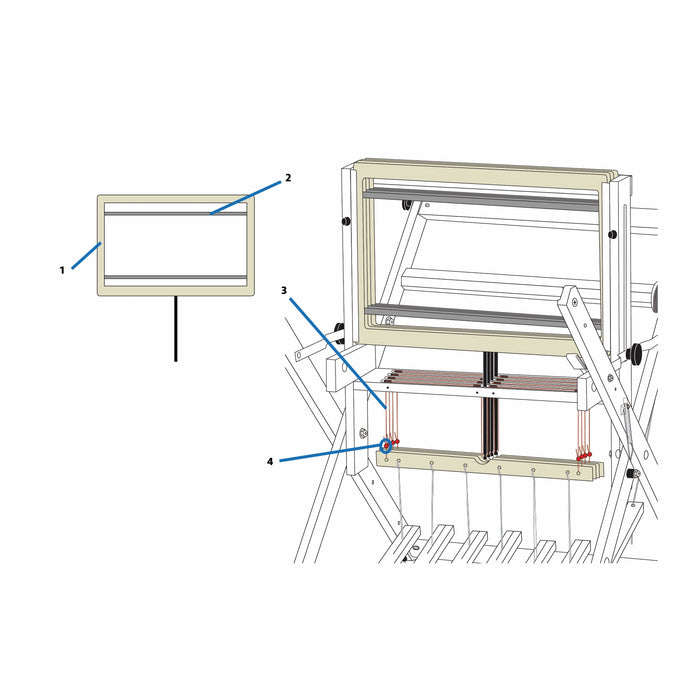

1. harness
2. heddle bar
3. harness cord pack
4. push lock screw set

Also available

• harness shim

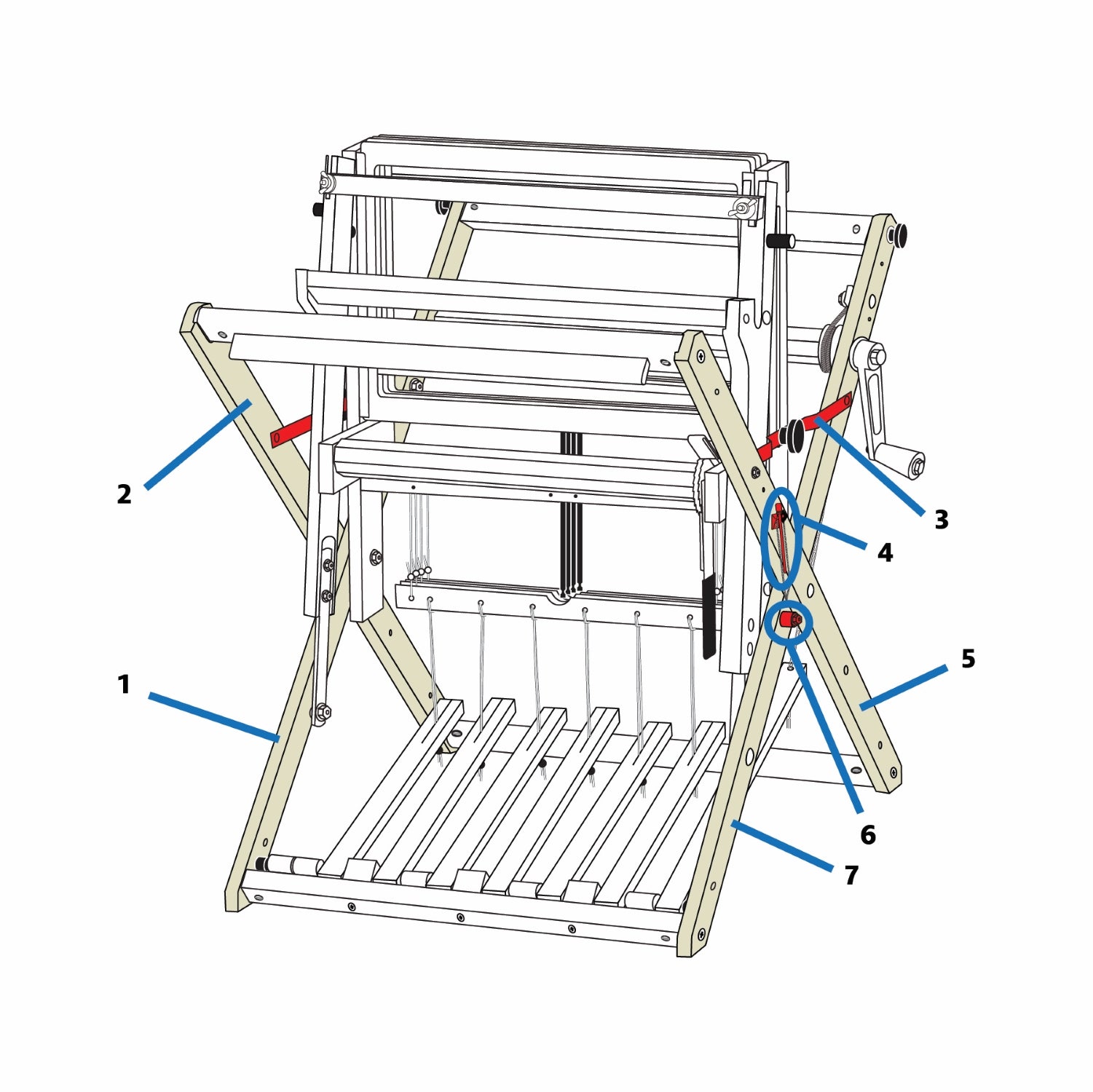

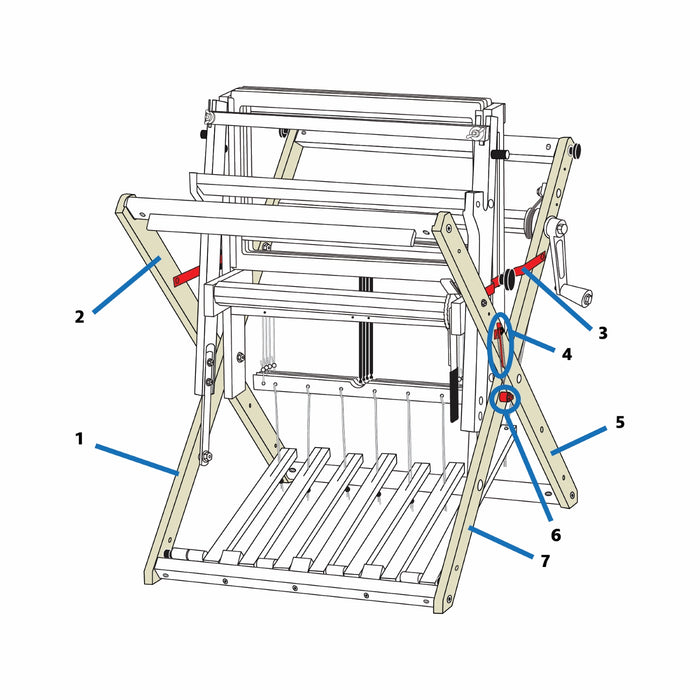

1. left leg inside
2. left leg outside
3. fold up support
4. beater pin kit on right outside leg
5. right outside leg
6. safety stop kit on inside legs
7. right inside leg

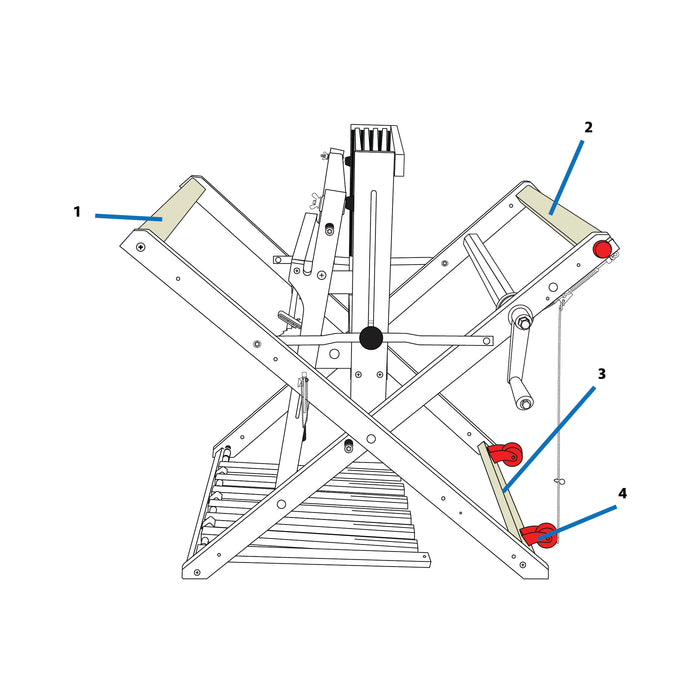

1. front beam and/or extension
2. removable back beam kit or knob kit
3. rear leg brace kit
4. wheel kit

Also available

• barrel nuts pack

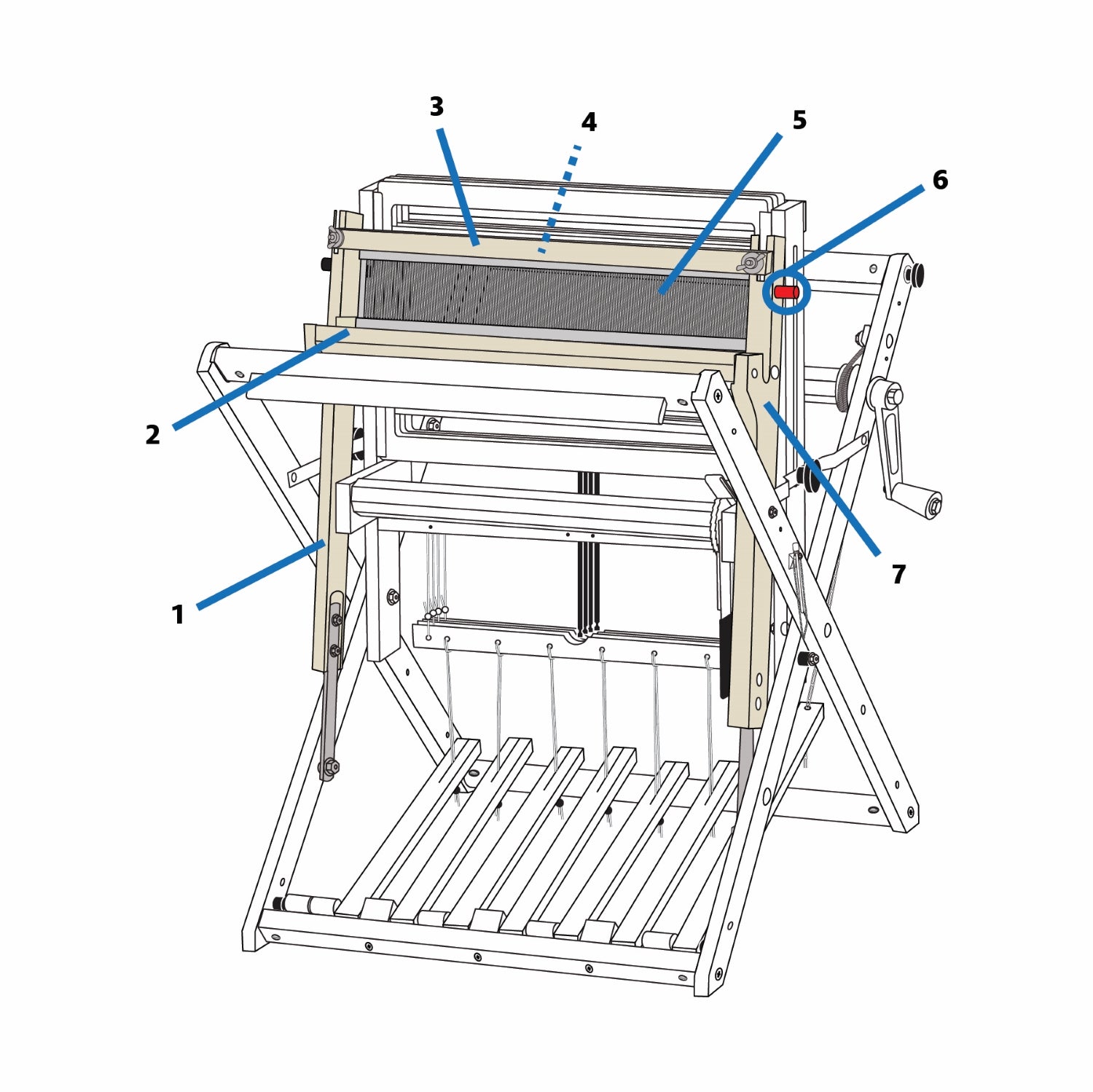

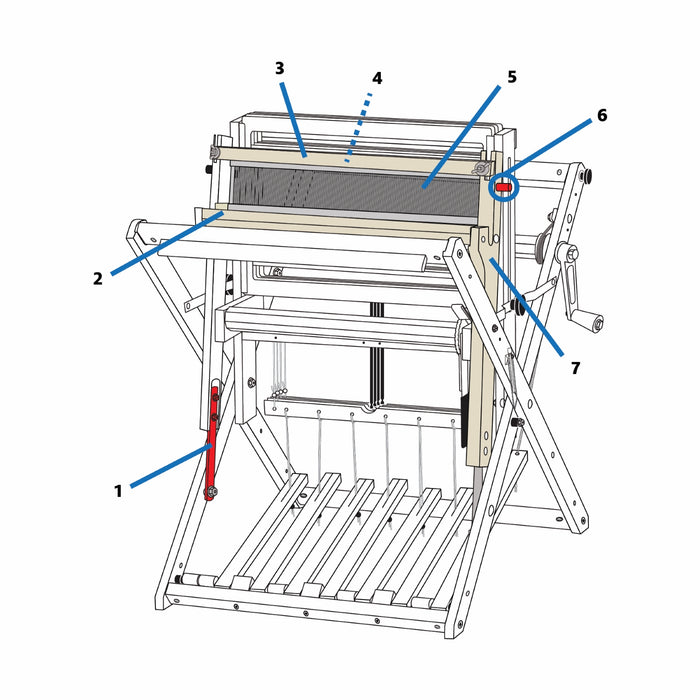

1. beater support kit
2. beater bottom kit
3. beater top kit
4. safety walk (gray grip strip)
5. stainless steel reed
6. beater peg kit
7. beater side, left or right

• brake barrel nuts (choose the appropriate option)
• brake spring with insert
• brake cord kits (choose the appropriate option)
• brake cable kits (choose the appropriate option)
• complete warp beam crank handle or tapered handle kit
• cap nut
• ratchet advance lever
• ratchet dog
• ratchet gear

Find complete details on PARTS page.
