Schacht Spindle Company

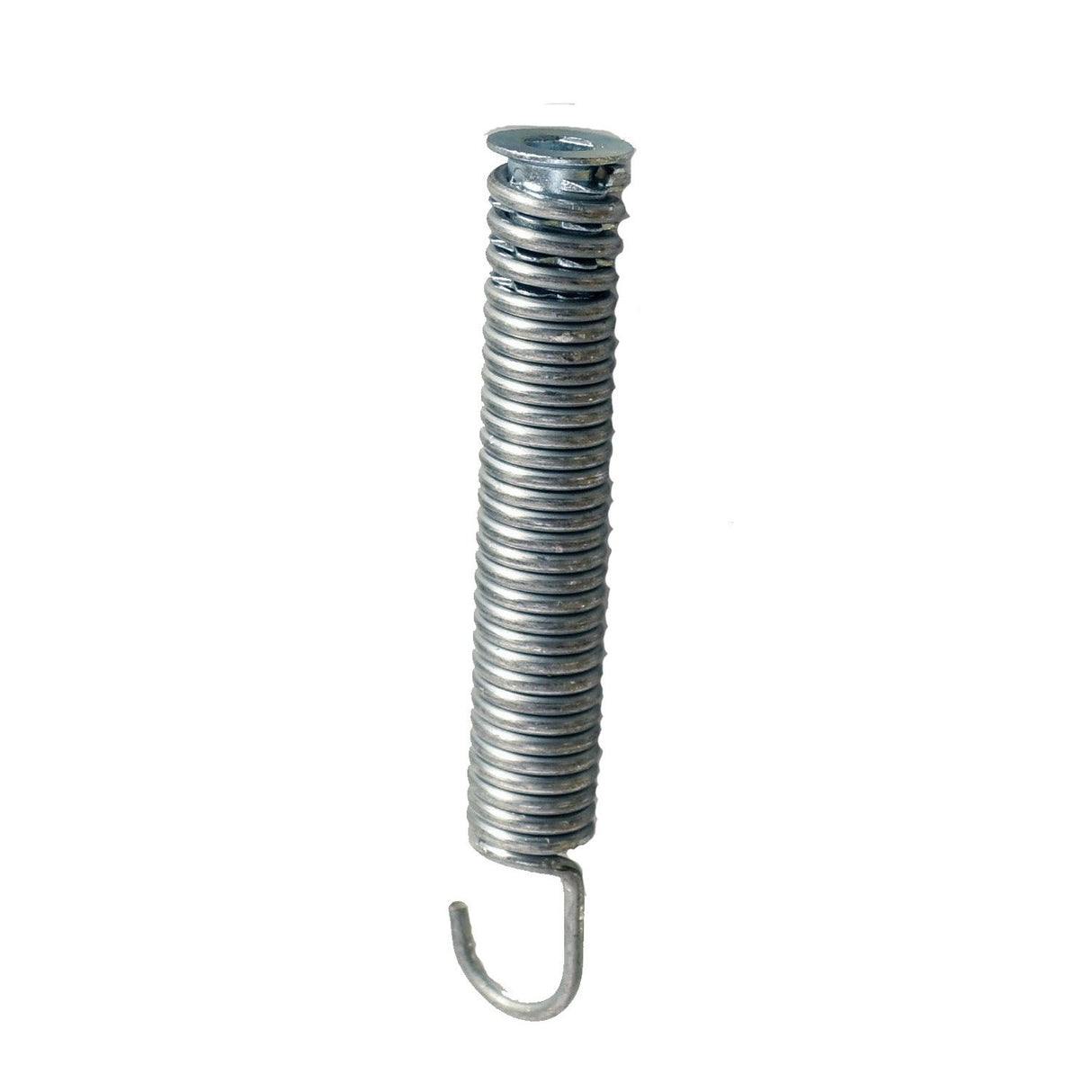

Brake Spring for Wolf

Schacht Spindle Company  |  SKU: R-16-971003

Includes one brake spring with the insert to attach the brake eye bolt.

Fits all Wolf looms.

$35.75
Find a Dealer Near You

Lead Time
  • Most orders will ship within 2 weeks. Orders for floor looms and spinning wheels will ship within 9 weeks.

Read before ordering

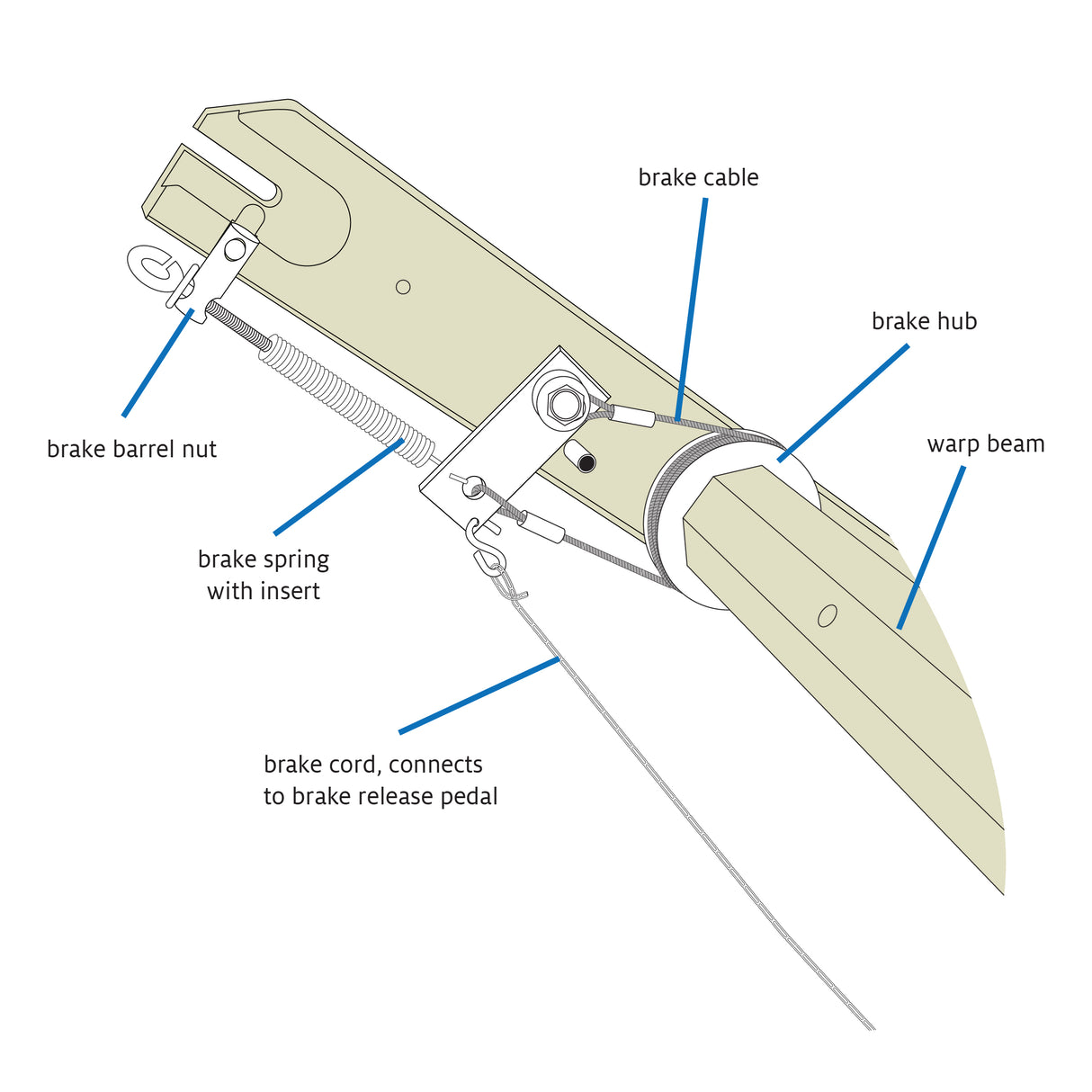

How to install
  1. Measure the length of the spring and write down this number—it will help you reset the brake to the proper tension.
  2. Remove the brake eye bolt and its washer from the brake barrel nut.
  3. Unhook the old brake spring from the brake bar.
  4. Hook the new brake spring to the brake bar.
  5. Attach the brake eye bolt and its washer to the brake spring. Keep tightening the eye bolt until the spring reaches its old measurement.
  6. Test the friction action: stand at the back of the loom and try to turn the warp beam away from you with both hands. If the warp beam turns, tighten the eye bolt.
