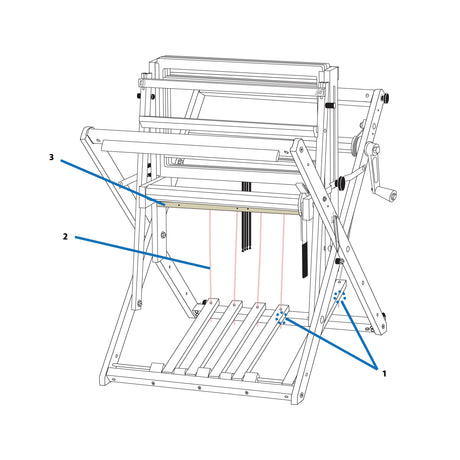

Original Wolf Pup
arrow pegs pack for harness cord and brake cord harness cords pack pulley brace Also available apron bar apron cords (choose appropriate option) apron cord retainer beater bottom kit, top...
Product Diagrams
Original Wolf Pup
-

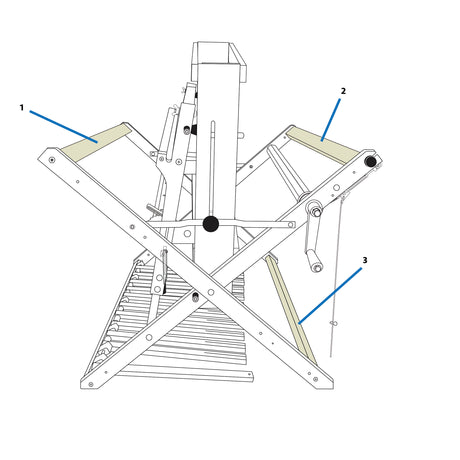

Mighty Wolf Loom Frame Parts
front beam with extension or extension only removable back beam kit or knob kit rear leg brace kit Also available: barrel nuts pack
-

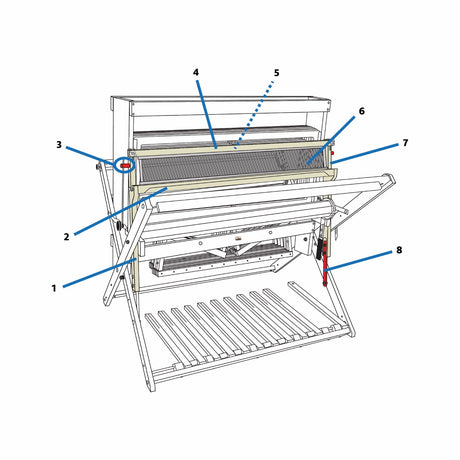

Mighty Wolf Loom Beater Parts
left beater side beater bottom kit beater stop kit (select appropriate variant) beater top kit safety walk ( gray grip strip) stainless steel reed (select appropriate variant) right beater side beater support kit...
-

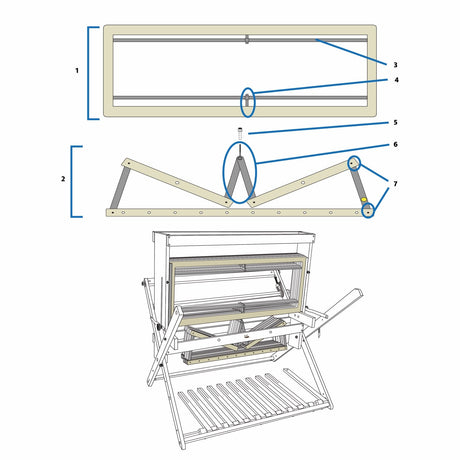

Mighty Wolf Loom Shaft (Harness) Parts
harness in maple jack and lamm kits (select appropriate variant for your loom) heddle bar heddle bar hook nuts and O-rings pack jack riser kit jack and lamm pin Also available:...
-

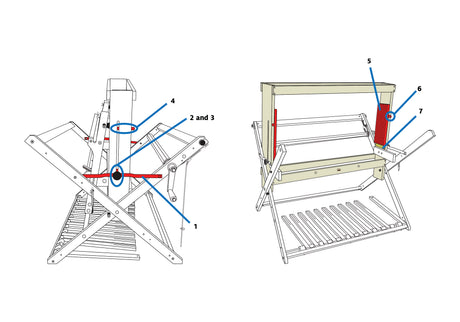

Mighty Wolf Loom Castle Parts
fold up support fold knob kit metal T-nut slide lock for 4 shaft or 8 shaft harness channel beater bumper foam tape
-

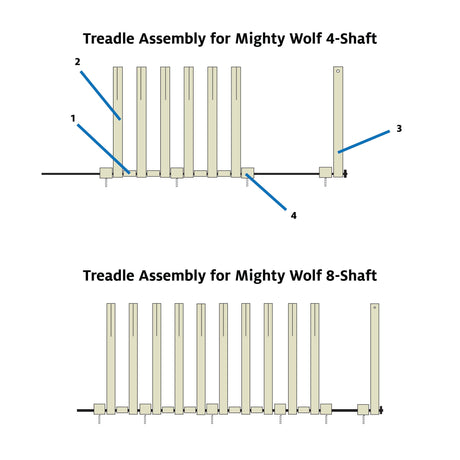

Mighty Wolf Loom Treadle Parts
dowel treadle (select appropriate variant for your loom) brake release pedal (select appropriate variant for your loom) treadle block Note: Height Extender looms use Height Extender treadles and a Height Extender Brake...
-

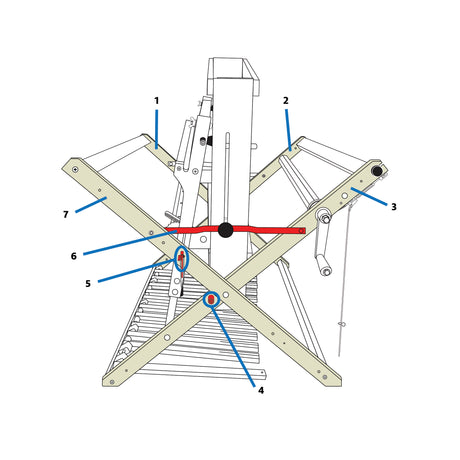

Mighty Wolf Loom Leg Parts
left outside leg left inside leg right inside leg safety stop kit on inside legs—contact Customer Service beater pin kit on right outside leg fold up support right outside leg...
-

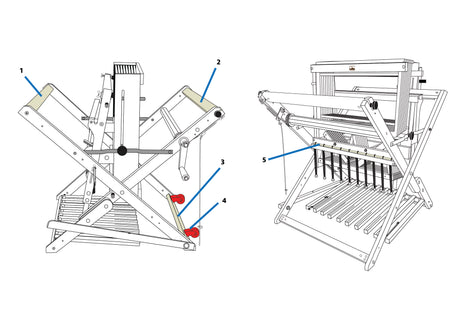

Wolf Pup 8.10 Loom Frame Parts
front beam with extension or extension only removable back beam kit or knob kit rear leg brace kit wheel kit treadle aid dowel or cords (select appropriate variant) Also available: barrel...
-

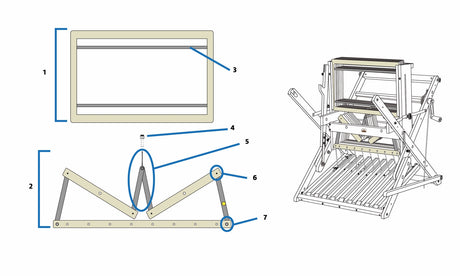

Wolf Pup 8.10 Loom Shaft (Harness) Parts
harness jack and lamm kits (Select appropriate version of 4 variants for the 8.10 loom) heddle bar nuts and O-rings pack jack riser kit jack pin lamm pin Also available: harness...
-

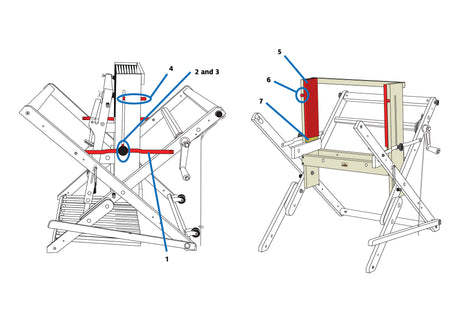

Wolf Pup 8.10 Loom Castle Parts
fold up support fold knob kit metal T-nut slide lock harness channel beater bumper foam tape
-

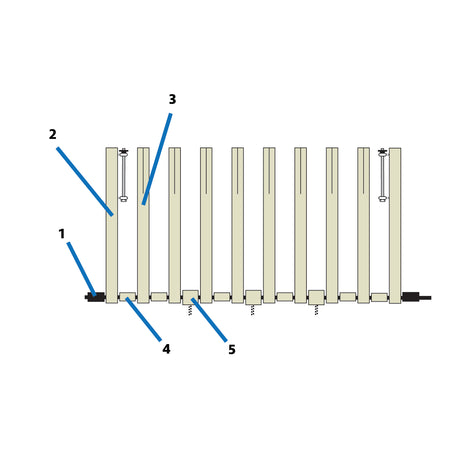

Wolf Pup 8.10 Loom Treadle Parts
spacer dowel treadle block outside treadle (select the appropriate variant for your loom) inside treadle (select the appropriate variant for your loom) Note: Height Extender looms use Height Extender treadles
-

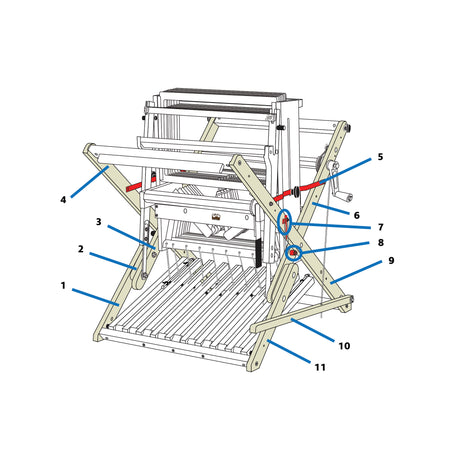

Wolf Pup 8.10 Loom Leg Parts
left inside lower leg sandwich block left inside upper leg left outside leg fold up support right inside upper leg beater pin kit on right outside leg safety stop—contact Customer...
-

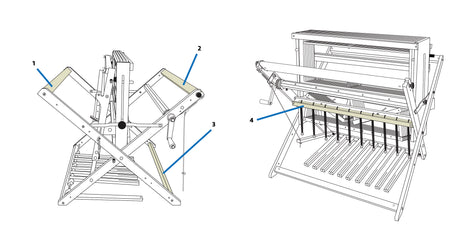

Baby Wolf Loom Frame Parts
front beam with extension or extension only removable back beam kit or knob kit rear leg brace kit - you may need to drill holes on older looms treadle aid...
-
Wolf Pup 8.10 Loom Beater Parts
beater support kit left beater side beater bottom kit beater top kit safety walk (gray grip strip) stainless steel reed (select appropriate variant) beater stop kit (select appropriate variant) beater side, left or...
-
Baby Wolf Loom Beater Parts
beater side kit, left or right beater bottom kit beater stop kit (select appropriate variant) beater top kit safety walk (gray grip strip) stainless steel reed (select appropriate variant) beater support kit
-
Baby Wolf Loom Shaft (Harness) Parts
harness jack and lamm kits (select appropriate variant for your loom) heddle bar heddle bar hook nuts and O-rings pack jack riser kit jack and lamm pin Also available: harness shim...
-
Baby Wolf Loom Castle Parts
fold up support fold knob kit metal T-nut slide lock harness channel beater bumper foam tape
-
Baby Wolf Loom Treadle Parts
dowel treadle (select appropriate variant for your loom) brake release pedal (select appropriate variant for your loom) treadle block washer ( 3/8” SAE) long spacer short spacer Note: Height Extender looms use Height...
-
Baby Wolf Loom Leg Parts
left outside leg left inside leg right inside leg safety stop kit on inside legs—contact Customer Service beater pin kit on right outside leg fold up support right outside leg...
-
Wolf Pup LT castle parts
pulley brace or pulley axle foam tape fold up support beater bumper harness channel fold knob kit metal T-nut
-
Wolf High Castle Tray Parts
shelf (select appropriate loom variant) extension (select appropriate loom variant)
-
Wolf Stroller Parts
wing nuts pack support bars (select appropriate variant) stroller block and wheel kits Also available conversion kit, Stroller to Height Extender Stroller hardware bags
-
Wolf Double Back Beam Parts
arrow peg brake cord kit - includes arrow peg (need to select appropriate variant) warp beam crank handle in maple or cherry and separate cap nut brake cable kits (need to select appropriate...
-
Wolf Height Extender Kit Parts
left inside block height extender treadles for Baby Wolf and Mighty Wolf, or Wolf Pup LT right inside block height extender brake release pedal for Baby Wolf/ Mighty Wolf/ Wolf Pup LT* right outside...
-
Standard Floor Loom Brake and Ratchet System
Brake Parts brake cable and spring kit for all Standard Floor Looms brake cable and spring kit for all SFL double back beams maple brake hold maple brake release pedal...
-
Wolf Loom Brake and Ratchet Parts
Individual Parts brake barrel nuts, short nut for looms with removable back beam or long nut for looms with fixed back beam brake spring with insert brake cord kits with...
-
Wolf Pup LT frame parts
front beam with extension and/or extension only removable back beam kit or knob kit rear leg brace kit wheel kit Also available: barrel nuts pack
-
Wolf Pup LT beater parts
beater support kit beater bottom kit beater top kit safety walk (gray grip strip) stainless steel reed (select appropriate size and dent) beater stop kit (select appropriate style) beater side, left or right...
-
Wolf Pup LT leg parts
left leg inside left leg outside fold up support beater pin kit on right outside leg right outside leg safety stop—contact Customer Service right inside leg
-
Wolf Pup LT Shaft/ Harness Parts
complete shaft (harness) heddle bar harness cord pack push lock screw set also available harness shim
-
Wolf Pup LT treadle assembly parts
12mm plastic spacer dowel treadle brake release pedal treadle block also available height extender treadles height extender brake release
-
-
Standard Floor Loom Shaft (Harness) Parts
maple 36" or 45" complete shaft 36" or 45" heddle bar heddle bar hook maple 36" or 45" complete jack and lamm (select appropriate width and style from #1 to #4)...
-
Standard Floor Loom Frame and Beater Parts
1/4-20 (long) barrel nuts pack beater support kit maple 36" or 45" square beam (same for front and back) maple 36" or 45" beater bottom kit stainless steel reed maple 36"...
-
Standard Floor Loom Castle Parts
fold knob kit beater bumper maple castle shelf for 36" or 45" high castle looms harness channel foam tape
-
Standard Floor Loom Treadle Parts
maple left treadle block maple treadle dowel maple treadle maple center treadle block maple right treadle block
-
Standard Floor Loom Double Back Beam Parts
complete warp beam crank handle (maple or cherry) or tapered handle only in maple or cherry cap nut for warp beam crank handle brake cable and spring kit brake hub kit...
-
-
-
