Jelly Roll Placemats
Designed and woven by Kate Kilgus

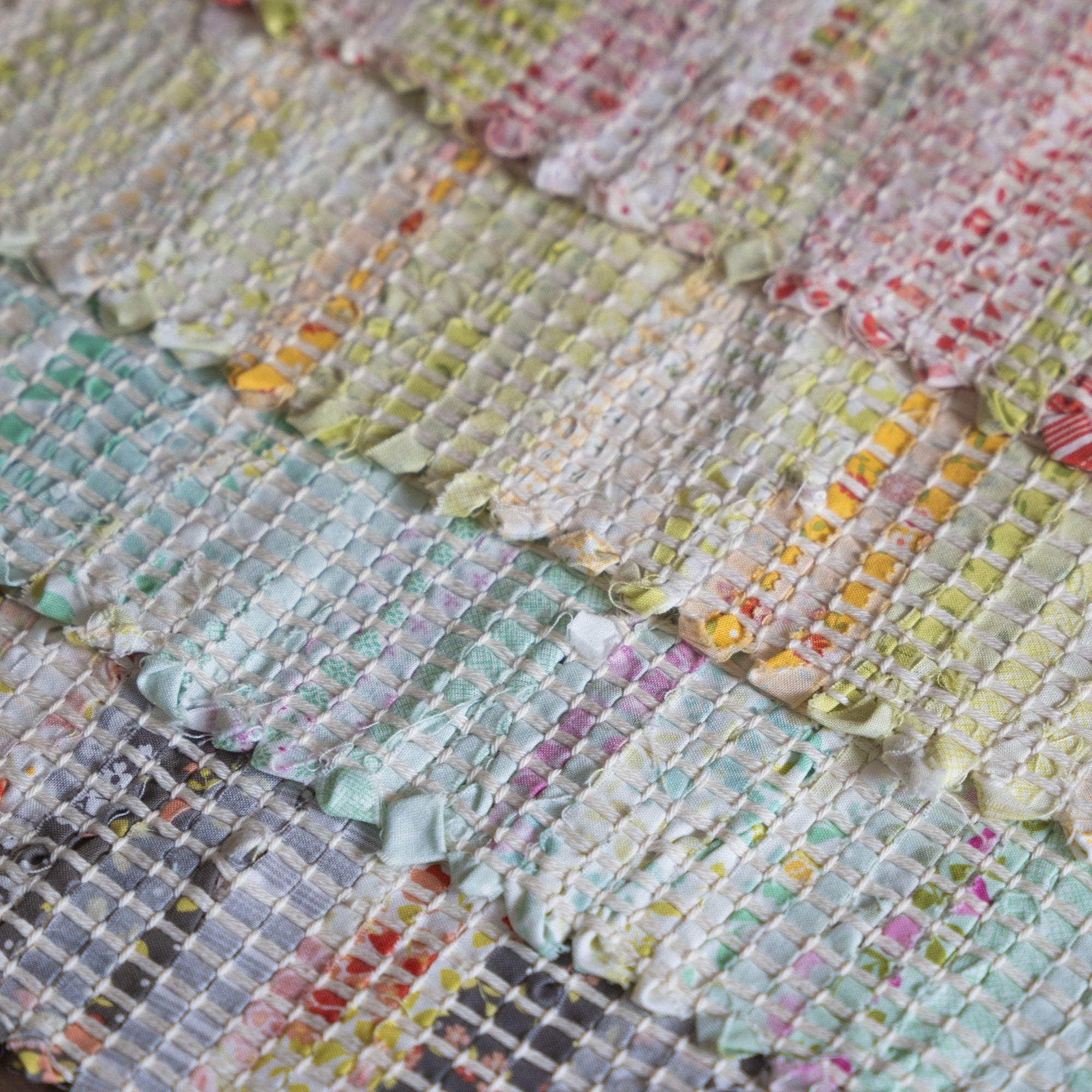

Weave up a set of four colorful placemats using pre-cut fabric strips from a jelly roll. Beloved by quilters, these color-coordinated fabric packs allow you to play with a wide array of colors to weave up four unique mats.
Project Specs
Finished size: 4 placemats each measuring 12" x 17" excluding the fringe
Weave structure: Plain weave
Number of warp ends: 70 doubled warp ends (140 ends total)
Warp length: 3 yards
Width in reed: 14"
EPI: 5
PPI: 8
What You'll Need
- Warp: 8/4 Maysville Cotton Carpet Warp, 100% cotton, Ivory, 420 yds needed.
- Thin weft: 8/4 Maysville Cotton Carpet Warp, 100% cotton, Ivory, 110 yds needed.
-
Thick weft: 1 standard jelly roll quilting cotton fabric pack, 100% cotton, Canning Day (choose any colorway you like), Moda, 100 yds of 5/8" width strips needed.
- rigid heddle loom with at least a 14" weaving width - I used my Schacht Flip Loom
- 5 dent rigid heddle reed (or 10 dent rigid heddle with warp ends spaced for a sett of 5)
- two stick shuttles
- hemstitching needle
- rotary cutter and cutting mat
- 2 cardboard spacers measuring 1" x 18"
Materials
Equipment
Directions
Warping
Warp the loom following the project specs listed above. Sley the heddle with doubled ends.
Cut the Strips
- Prepare your color combinations. Pick 6 strips for each placemat. Since jelly rolls come in color-coordinated fabrics, you can’t go wrong!
- Use a rotary cutter and mat to cut a jelly roll strip in half lengthwise, for a 1-1/4" strip.
- Cut again to create 5/8" strips.
Cut all the strips the same way, organizing them by placemat.
Connecting the Strips
- Fold over one end of a strip about 1/2". Cut a 1/4" slit
in the fold. This will create a hole like a buttonhole.
- Make another slit in a second strip.
Place the slitted end of strip 2 through the slit in strip 1.
- Place the uncut end of strip 2 through the slit in strip 2 and
pull to tighten into a knot.
- Repeat steps 1-6 until you have attached 20 strips. The long strip of attached pieces will continuously become strip 1 in the above instructions.
Weaving
- Wind the long strip onto one shuttle. This is your “thick weft.”
- Wind 8/4 cotton carpet warp on the other shuttle. This is your “thin weft.”
- Weave a header to space the warp.
- Place a spacer in the next shed to allow enough room for the fringe. Remove the spacer after you’ve woven for a couple of inches so you can reuse it.
- Leave a tail that is 5x the width of the weaving for hemstitching on your dominant side.
- Weave doubled ends for a total of 8 picks (weave across in the same shed twice, catching the selvedge).
- Hemstitch in groups of 2 warps and 2 wefts (both doubled so 4 total threads).
- To reduce bulk at the beginning of the placemat, we will split the end of the thick weft: cut through the center of the fabric weft about 6" from the end and trim off one of the halves. Weave across with the thick weft, leaving a tail about 3" long on the selvedge. Insert the tail into the same shed, ensuring that you catch the selvedge.
- Weave one pick of thin weft (singly). Interlock the wefts when they meet at the selvedge.
- Weave one pick of the thick weft. Interlock the wefts when they meet at the selvedge.
- Repeat steps 9-10 for 18". Your
weaving should be approximately 8 PPI.
Finish the thick weft using the same technique as the beginning.
- Weave an edge as you did at the beginning and hemstitch.
- Place 2 spacers. This will allow fringe for the placemat you just wove and for the next one.
- Repeat steps 5-14 for all 4 placemats.
Finishing
- Place one final spacer in the next shed.
- Weave a few picks of plain weave. I call this a “footer,” and it helps to hold the warp ends in line when trimming the fringe.
- Remove the placemats from the loom.
- Trim the fringe to your desired length. I cut mine to 1" using a rotary cutter.
- Wash in warm water with gentle detergent. Allow mats to soak for a while and agitate gently.
- Remove from the water, pressing out as much water as possible.
- Place on a clean bath towel and roll to squeeze out more water.
- Lay flat to dry. Trim any loose ends.
Notes
Resources
Davenport, Betty Linn. Hands On Rigid Heddle Weaving, Interweave Press, 1987.
