Brake Cable Kits for Wolf Looms and Wolf Double Back Beams
kit for looms with removable back beams
current brake

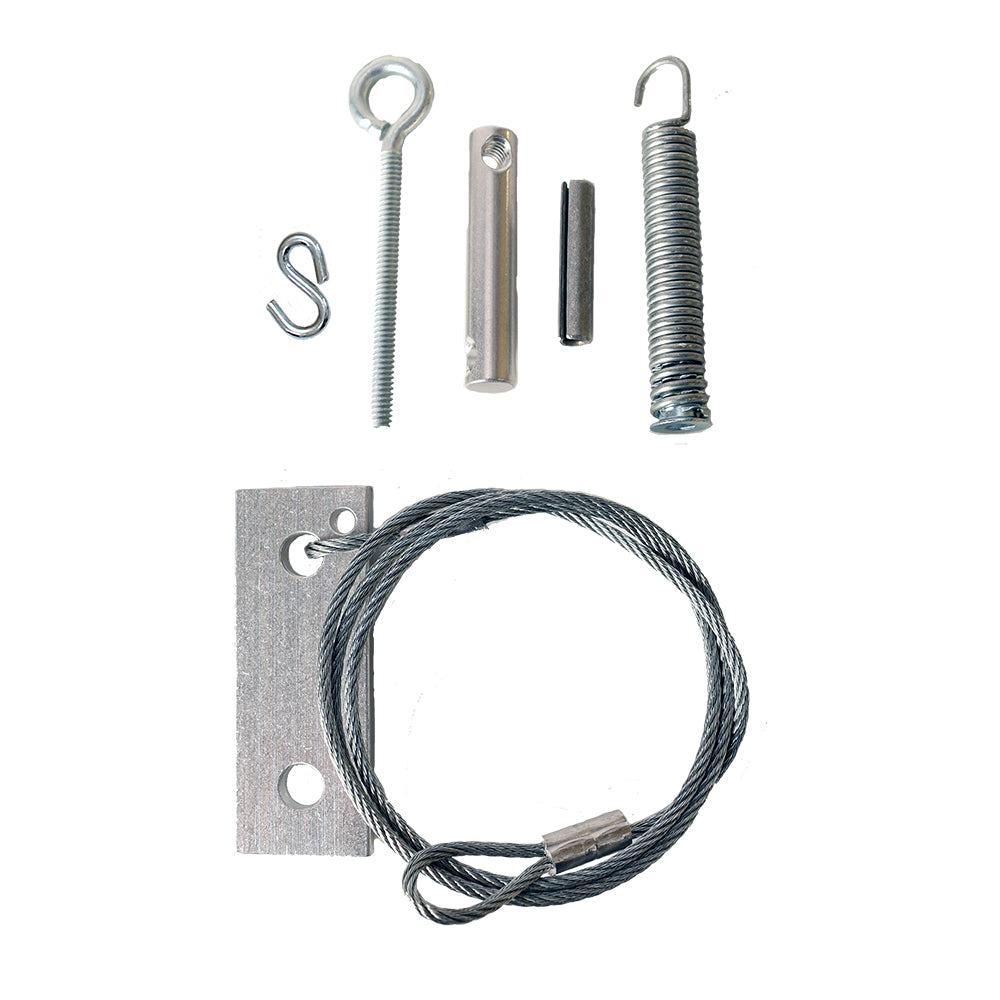

kit for looms with fixed back beams
middle brake, fixed back beam
old brake, fixed back beam
Brake Cable Kits for Wolf Looms and Wolf Double Back Beams
kit for looms with removable back beams
current brake
kit for looms with fixed back beams
middle brake, fixed back beam
old brake, fixed back beam

Brake Cable Kits for Wolf Looms and Wolf Double Back Beams

SKUR-16-980343

Pre 2009 kit updates old and middle brakes as much as possible—looms or double back beams with fixed back beams cannot be converted to removable back beams.

  • 1X brake bar and cable
  • 1X brake S-hook
  • 1X brake eye bolt
  • 1X #12 SAE washer
  • 1X brake spring with insert
  • 1X 1/4" x 1-1/4" roll pin
  • 1X brake barrel nut (old style)
  • 1X 1/4" USS washer
  • 1X 5/16-18 slim lock nut

2009 kit replaces current brake system on looms or double back beams with removable back beams:

  • 1X brake bar and cable
  • 1X brake S-hook
  • 1X brake eye bolt
  • 1X #12 SAE washer
  • 1X brake spring with insert
  • 1X 1/4" x 1-1/4" roll pin
  • 1X brake barrel nut (current style)
  • 1X 1/4" USS washer
  • 1X 5/16-18 slim lock nut

This part requires staff assistance.

Click here for help with this part.


$58.00 Sale Save
