Directions

Warping

1. For my sample warp, and the project I’ll include in my next blog, I wanted to have one layer of cloth that would be aqua and one layer that would be white. In order to achieve this with the most efficiency, I wound both colors/layers at once. Using the Goko Swift, I put two skeins side-by-side and wound one yarn from each simultaneously onto the warping mill. In order to keep yarns as straight as possible, I kept one finger in between the two strands as I wound.



2. For a double weave, you can use as few as four shafts of the loom. Each layer of fabric needs at least two shafts. Because I already wound the warp in pairs of two yarns (one white, one aqua) it was simple for me to thread two yarns per dent of the reed. It is important that the pattern is maintained (one white and one aqua per dent). This makes the threading process simple! Use a straight draw threading that carefully alternates the colors. See draft.



Weaving Separate Layers

1. When thinking about the tie-up, keep in mind, that you are weaving two layers of cloth consecutively.

   For the top layer, lift shaft 1 and pass the shuttle through and then lift shaft 3 and pass the shuttle through. Now the picks for the top layer are complete.



2. Then it’s time to weave the bottom layer. In order to do this, you need to lift the top layer (shafts 1 and 3) plus shaft 2 for the bottom layer.



3. Keep shafts 1 and 3 lifted, lower shaft 2 and raise shaft 4 for the final pick.

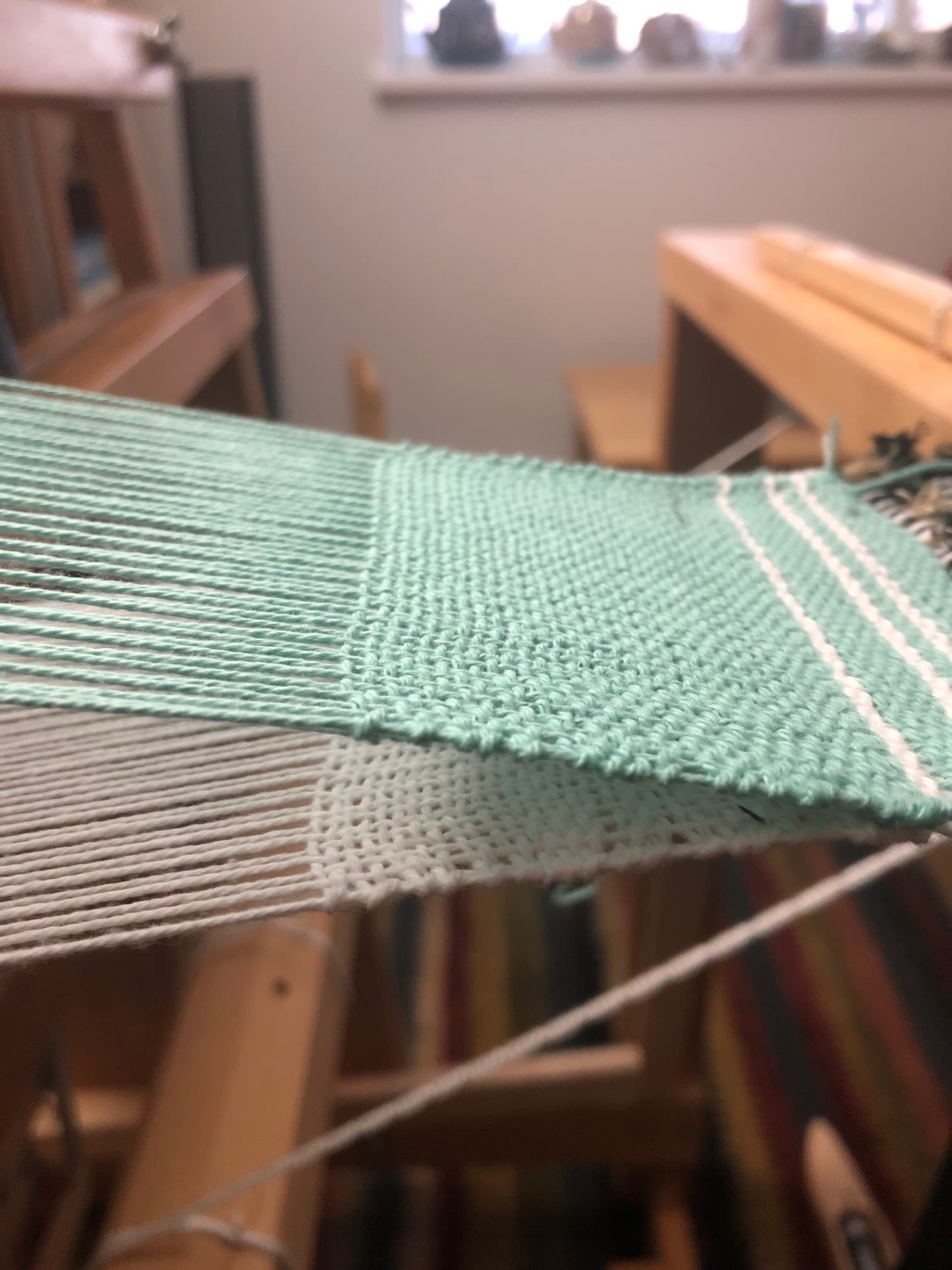

4. There are now two separate layers of cloth sitting on top of each other—aqua on top, white on the bottom.



5. In order to switch the top layer and bottom layer, the treadling will change:

   First lift shaft 2, pass the boat shuttle through, then lift shaft 4. The white yarns should actually pass in between the aqua yarns and make a white stripe.

   Now to weave the aqua layer on the bottom, lift the entire white layer plus shaft 1 of aqua. Pass the boat shuttle through and then lift shafts 2 and 4 plus shaft 3 of the aqua. This action intertwines the two layers. You may now proceed with either the white or aqua as the top layer.

   This is the first step to being able to make tubes, pockets and slits which I will discuss in the next post.
